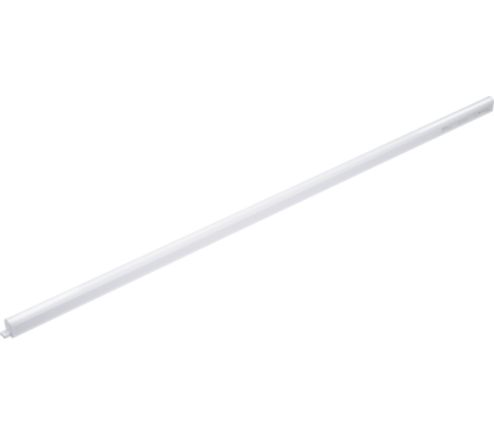

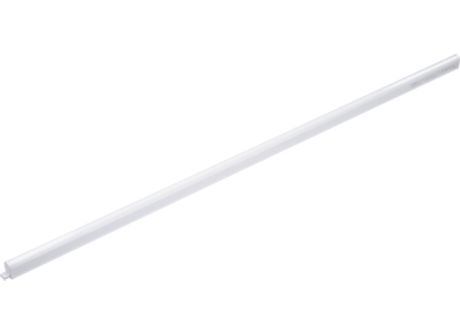

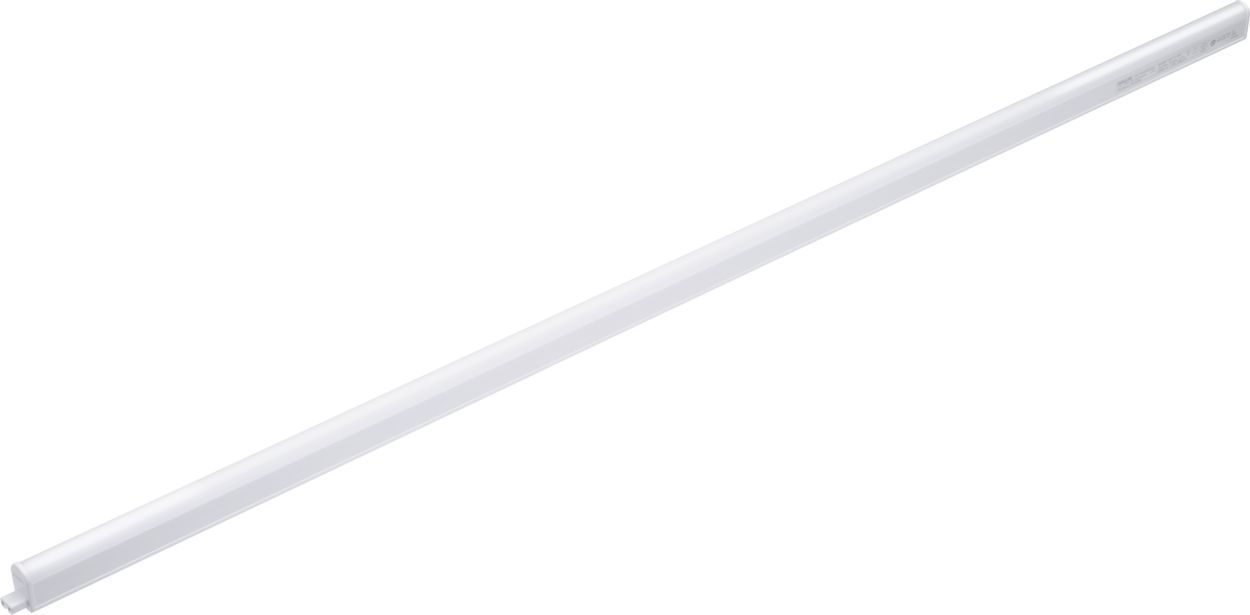

BN068C LED9/NW L900 G2

Specifications Show all

General Information

Light source colour	Neutral white
Light source replaceable	No
Number of gear units	1 unit
Driver/power unit/transformer	PSU  [ Power supply unit]
Driver included	Yes
Optic type	WB  [ Wide beam]
Luminaire light beam spread	140°
Connection	Flying leads/wires
Cable	Cable without plug 2-pole
Protection class IEC	Safety class II (II)
Glow-wire test	850/5  [ Temperature 850 °C, duration 5 s]
CE mark	-
Warranty period	1 years
Constant light output	No
Number of products on MCB	10
RoHS mark	RoHS mark

Operating and Electrical

Input voltage	220 to 240 V
Input frequency	50 to 60 Hz
Power factor (min.)	0.5

Controls and Dimming

Dimmable

No

Mechanical and Housing

Housing material	Polyamide
Optic material	Polycarbonate
Optical cover/lens material	Polyamide
Fixation material	Steel
Optical cover/lens finish	Clear
Overall length	885 mm
Overall width	21 mm
Overall height	34.2 mm

Approval and Application

Ingress protection code	IP20  [ Finger-protected]
Mech. impact protection code	IK00  [ No protection]

Initial Performance (IEC Compliant)

Initial luminous flux	900 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	80 lm/W
Init. Corr. colour temperature	4000 K
Init. colour rendering index	>80
Initial chromaticity	SDCM<7
Initial input power	11.25 W
Power consumption tolerance	+/-10%

Application Conditions

Ambient temperature range	-20 to +40 °C
Maximum dimming level	Not applicable
Suitable for random switching	Not applicable

Product Data

Full product code	911401819197
Order product name	BN068C LED9/NW L900 G2
EAN/UPC – product	8710163310459
Order code	01819197
Numerator – quantity per pack	1
Numerator – packs per outer box	24
Material no. (12NC)	911401819197
Net weight (piece)	0.125 kg
