Specifications Show all

General Information

Cap base	E27  [ E27]
RoHS mark	RoHS mark
Nominal lifetime (nom.)	15000 h
Switching cycle	50000X
Technical type	10-80W

Light Technical

Colour code	865  [ CCT of 6500K]
Beam Angle (Nom)	120 °
Luminous flux (nom.)	950 lm
Luminous flux (rated) (nom.)	950 lm
Colour designation	Cool Daylight
Rated beam angle	120 °
Correlated colour temperature (nom.)	6500 K
Luminous efficacy (rated) (nom.)	95.00 lm/W
Colour consistency	<6
Color rendering index (nom.)	80
LLMF at end of nominal lifetime (nom.)	70 %

Operating and Electrical

Input frequency	50 to 60 Hz
Power (Rated) (Nom)	10 W
Lamp current (nom.)	65 mA
Wattage equivalent	80 W
Starting time (nom.)	0.5 s
Warm-up time to 60% light (nom.)	0.5 s
Power factor (nom.)	0.5
Voltage (Nom)	220-240 V

Temperature

T-Case maximum (nom.)

72 °C

Controls and Dimming

Dimmable

No

Approval and Application

Suitable for accent lighting	No
Energy Consumption kWh/1000 h	10 kWh

Product Data

Full product code	871869679821800

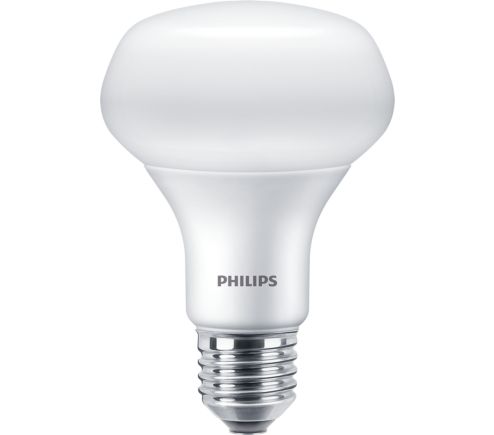

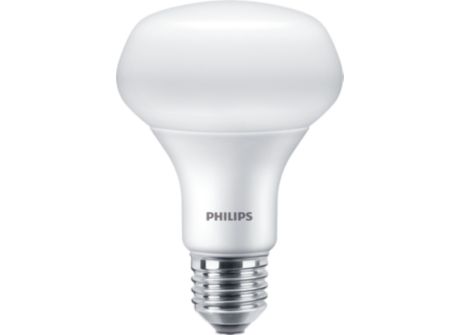

Order product name	ESS LED 10W E27 6500K 230V R80
EAN/UPC – product	8718696798218
Order code	79821800
Numerator – quantity per pack	1
Numerator – packs per outer box	12
Material no. (12NC)	929001858108
Net weight (piece)	0.036 kg
