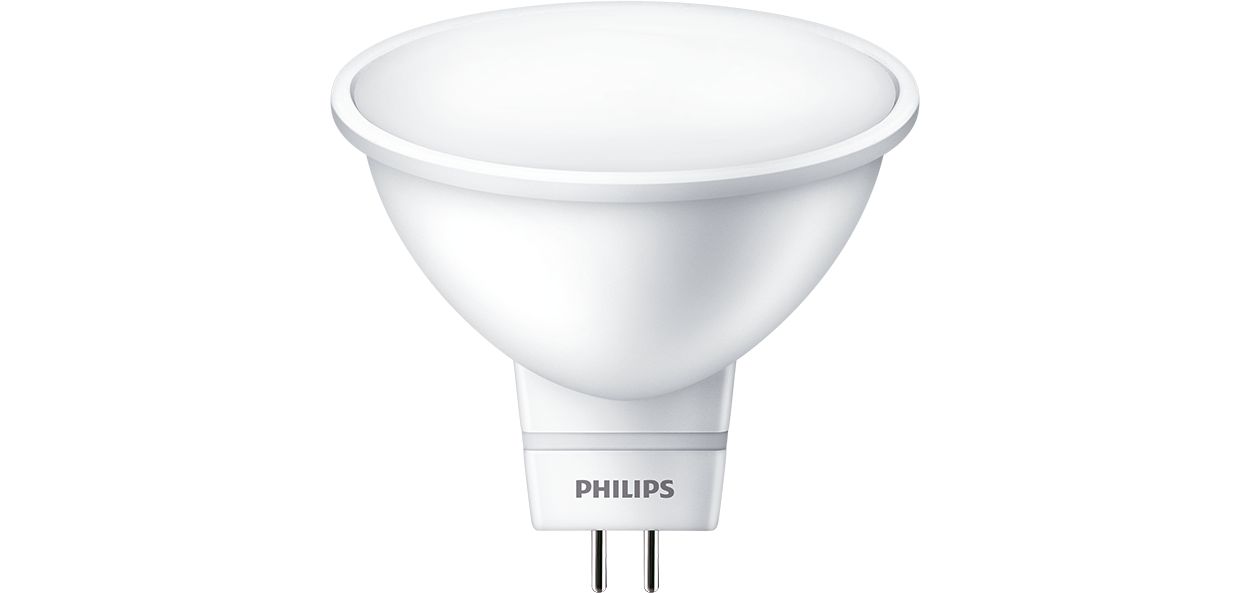

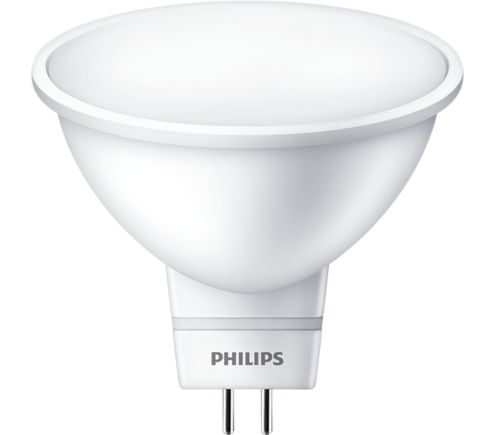

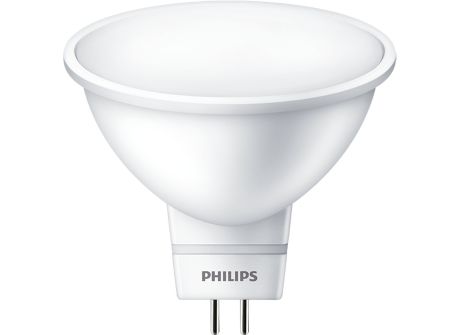

LED spot 3-35W 120D 6500K 220V

Specifications Show all

General Information

Cap base	GU5.3  [ GU5.3]
RoHS mark	RoHS mark
Nominal lifetime (nom.)	10000 h
Switching cycle	50000X
Technical type	3-35W

Light Technical

Colour code	765  [ CCT of 6500K]
Beam Angle (Nom)	120 °
Luminous flux (nom.)	240 lm
Luminous flux (rated) (nom.)	240 lm
Colour designation	Cool Daylight
Rated beam angle	120 °
Correlated colour temperature (nom.)	6500 K
Luminous efficacy (rated) (nom.)	80.00 lm/W
Colour consistency	<6
Color rendering index (nom.)	70
LLMF at end of nominal lifetime (nom.)	70 %

Operating and Electrical

Input frequency	50 to 60 Hz
Power (Rated) (Nom)	3 W
Lamp current (nom.)	30 mA
Wattage equivalent	35 W
Starting time (nom.)	0.5 s
Warm-up time to 60% light (nom.)	0.5 s
Power factor (nom.)	0.45
Voltage (Nom)	220 V

Temperature

T-Case maximum (nom.)

70 °C

Controls and Dimming

Dimmable

No

Approval and Application

Suitable for accent lighting	No
Energy Consumption kWh/1000 h	3 kWh

Product Data

Full product code	871869679324400
Order product name	LED spot 3-35W 120D 6500K 220V
EAN/UPC – product	8718696793244
Order code	79324400
Numerator – quantity per pack	1
Numerator – packs per outer box	10
Material no. (12NC)	929001845008
Net weight (piece)	0.038 kg
