    • Strong performance spotlight for retrofit MR16 halogen spots

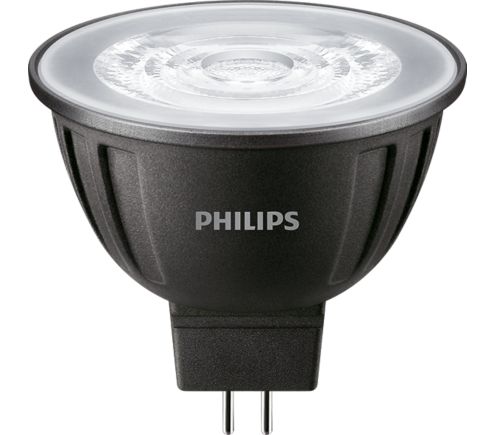

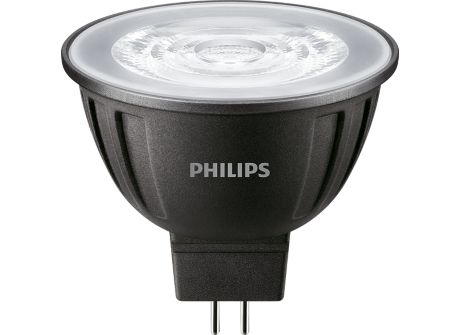

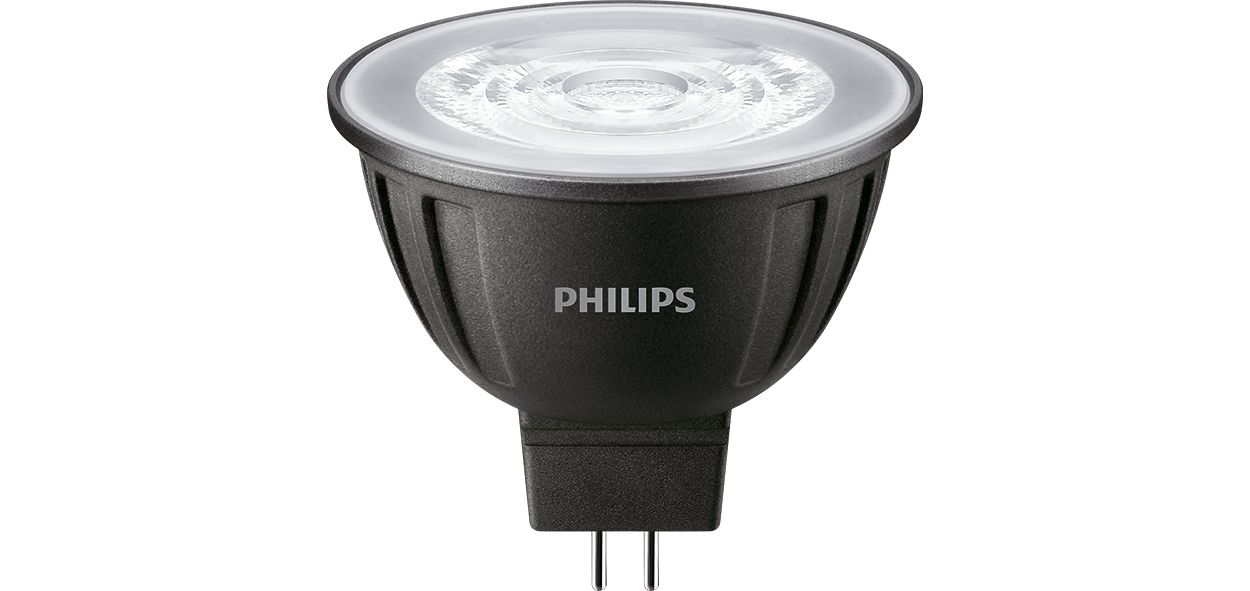

      MASTER LED 8-50W+ 827 MR16 24D Dim
      LED
      MASTER LED 8-50W+ 827 MR16 24D Dim
      MASTER LEDspot LV

      MASTER LED 8-50W+ 827 MR16 24D Dim

      Order code: 81255600

      Full product code: 871869681255600

      Downloads

      Leaflet
      Size:693.2 kB

      See all downloads

    Specifications Show all

    General Information
    Cap base
    GU5.3  [ GU5.3]
    RoHS mark
    RoHS mark
    Nominal lifetime (nom.)
    40000 h
    Switching cycle
    50000X
    Technical type
    8-50W
    Light Technical
    Colour code
    827  [ CCT of 2700K]
    Beam Angle (Nom)
    24 °
    Luminous flux (nom.)
    660 lm
    Luminous flux (rated) (nom.)
    660 lm
    Luminous intensity (nom.)
    3100 cd
    Colour designation
    Warm White (WW)
    Rated beam angle
    24 °
    Correlated colour temperature (nom.)
    2700 K
    Luminous efficacy (rated) (nom.)
    82.00 lm/W
    Colour consistency
    <4
    Color rendering index (nom.)
    80
    LLMF at end of nominal lifetime (nom.)
    70 %
    Operating and Electrical
    Power (Rated) (Nom)
    8 W
    Lamp current (nom.)
    960 mA
    Wattage equivalent
    50 W
    Starting time (nom.)
    0.5 s
    Warm-up time to 60% light (nom.)
    0.5 s
    Power factor (nom.)
    0.7
    Voltage (Nom)
    12 V
    Temperature
    T-Case maximum (nom.)
    100 °C
    Controls and Dimming
    Dimmable
    Yes
    Approval and Application
    Suitable for accent lighting
    Yes
    Energy Consumption kWh/1000 h
    9 kWh
    Product Data
    Full product code
    871869681255600
    Order product name
    MASTER LED 8-50W+ 827 MR16 24D Dim
    EAN/UPC – product
    8718696812556
    Order code
    81255600
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    10
    Material no. (12NC)
    929001881308
    Net weight (piece)
    0.052 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation diagrams
    GU5.3
    GU5.3
    Performance diagrams
    7-50W GU5-3 MR16
    7-50W GU5-3 MR16
    7-50W GU5-3 MR16
    7-50W GU5-3 MR16
    Photometrics
    8-50W GU5-3 MR16 24D 827 2700K
    8-50W GU5-3 MR16 24D 827 2700K
    8-50W GU5-3 MR16
    8-50W GU5-3 MR16
    8-50W GU5-3 MR16 24D 827 2700K
    8-50W GU5-3 MR16 24D 827 2700K
    Downloads
    Leaflets
    • Leaflet Localized commercial leaflet PDF 693.2 kB
    Green data
    Visuals
    Software plugins
    • IES 8-50W GU5-3 MR16 24D 827 2700K IES 9.0 kB
