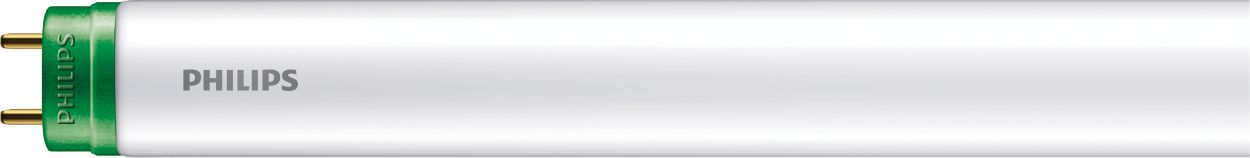

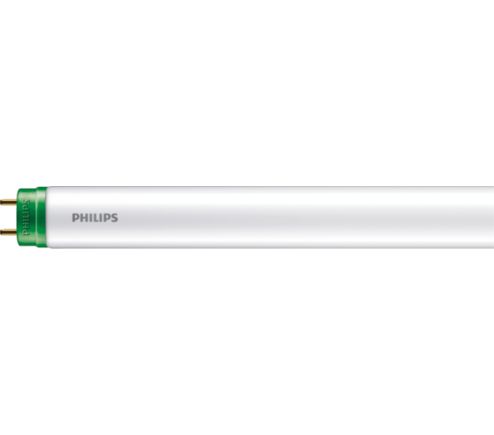

LEDtube HO 600mm 10W 765 T8 AP I G

Specifications Show all

General Information

Cap base	G13  [ Medium Bi-Pin Fluorescent]
Nominal lifetime (nom.)	15000 h
Switching cycle	50000X
B50L70	15000 h

Light Technical

Colour code	765  [ CCT of 6500K]
Luminous flux (nom.)	1050 lm
Luminous flux (rated) (nom.)	1050 lm
Correlated colour temperature (nom.)	6500 K
Colour consistency	<7
Color rendering index (nom.)	70
LLMF at end of nominal lifetime (nom.)	70 %

Operating and Electrical

Input frequency	50 to 60 Hz
Power (Rated) (Nom)	10 W
Lamp current (nom.)	85 mA
Starting time (nom.)	0.5 s
Warm-up time to 60% light (nom.)	0.5 s
Power factor (nom.)	0.5
Voltage (Nom)	220-240 V

Temperature

T ambient (max.)	45 °C
T ambient (min.)	-20 °C
T storage (max.)	65 °C
T storage (min.)	-40 °C
T-Case maximum (nom.)	65 °C

Controls and Dimming

Dimmable

No

Mechanical and Housing

Product length

600 mm

Approval and Application

Energy-saving product	Yes
Approval marks	RoHS compliance	KEMA Keur certificate
Energy Consumption kWh/1000 h	10 kWh

Product Data

Full product code	871869667440600
Order product name	LEDtube HO 600mm 10W 765 T8 AP I G
EAN/UPC – product	8718696674406
Order code	67440600
Numerator – quantity per pack	1
Numerator – packs per outer box	10
Material no. (12NC)	929001277508
Net weight (piece)	0.120 kg
