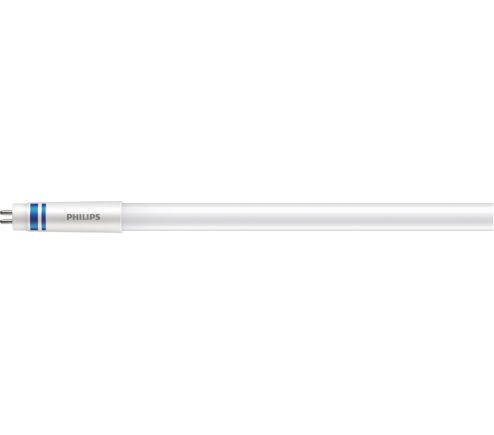

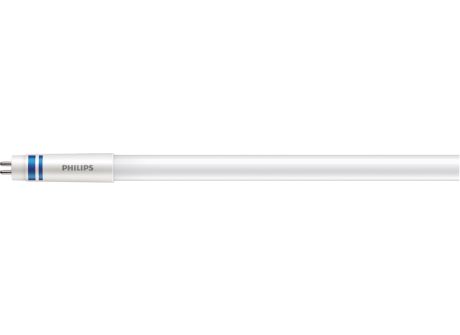

MAS LEDtube HF 1200mm HO 26W 830 T5

Specifications Show all

General Information

Cap base	G5  [ G5]
Nominal lifetime (nom.)	50000 h
Switching cycle	50000X
B50L70	50000 h

Light Technical

Colour code	830  [ CCT of 3000K]
Beam Angle (Nom)	160 °
Luminous flux (nom.)	3700 lm
Luminous flux (rated) (nom.)	3700 lm
Rated beam angle	160 °
Correlated colour temperature (nom.)	3000 K
Colour consistency	<6
Color rendering index (nom.)	83
LLMF at end of nominal lifetime (nom.)	70 %

Operating and Electrical

Power (Rated) (Nom)	26 W
Lamp current (max.)	700 mA
Lamp current (min.)	450 mA
Starting time (nom.)	0.5 s
Warm-up time to 60% light (nom.)	0.5 s
Voltage (Nom)	50-60 V

Temperature

T ambient (max.)	45 °C
T ambient (min.)	-20 °C
T storage (max.)	65 °C
T storage (min.)	-40 °C

Controls and Dimming

Dimmable

No

Mechanical and Housing

Product length

1200 mm

Approval and Application

Energy-saving product	Yes
Approval marks	RoHS compliance	CE marking	KEMA Keur certificate
Energy Consumption kWh/1000 h	31 kWh

Product Data

Full product code	871869670527800
Order product name	MAS LEDtube HF 1200mm HO 26W 830 T5
EAN/UPC – product	8718696705278
Order code	70527800
Numerator – quantity per pack	1
Numerator – packs per outer box	10
Material no. (12NC)	929001338302
Net weight (piece)	0.155 kg
