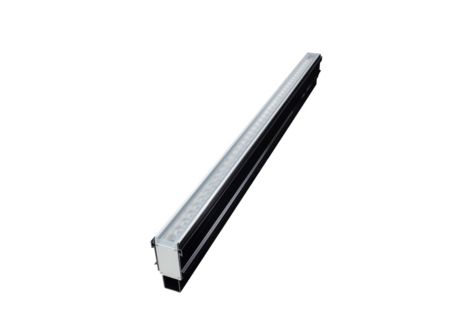

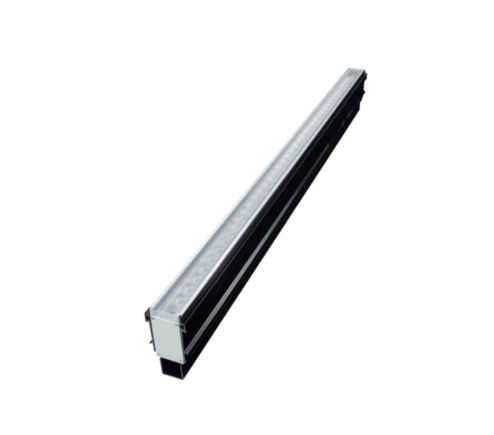

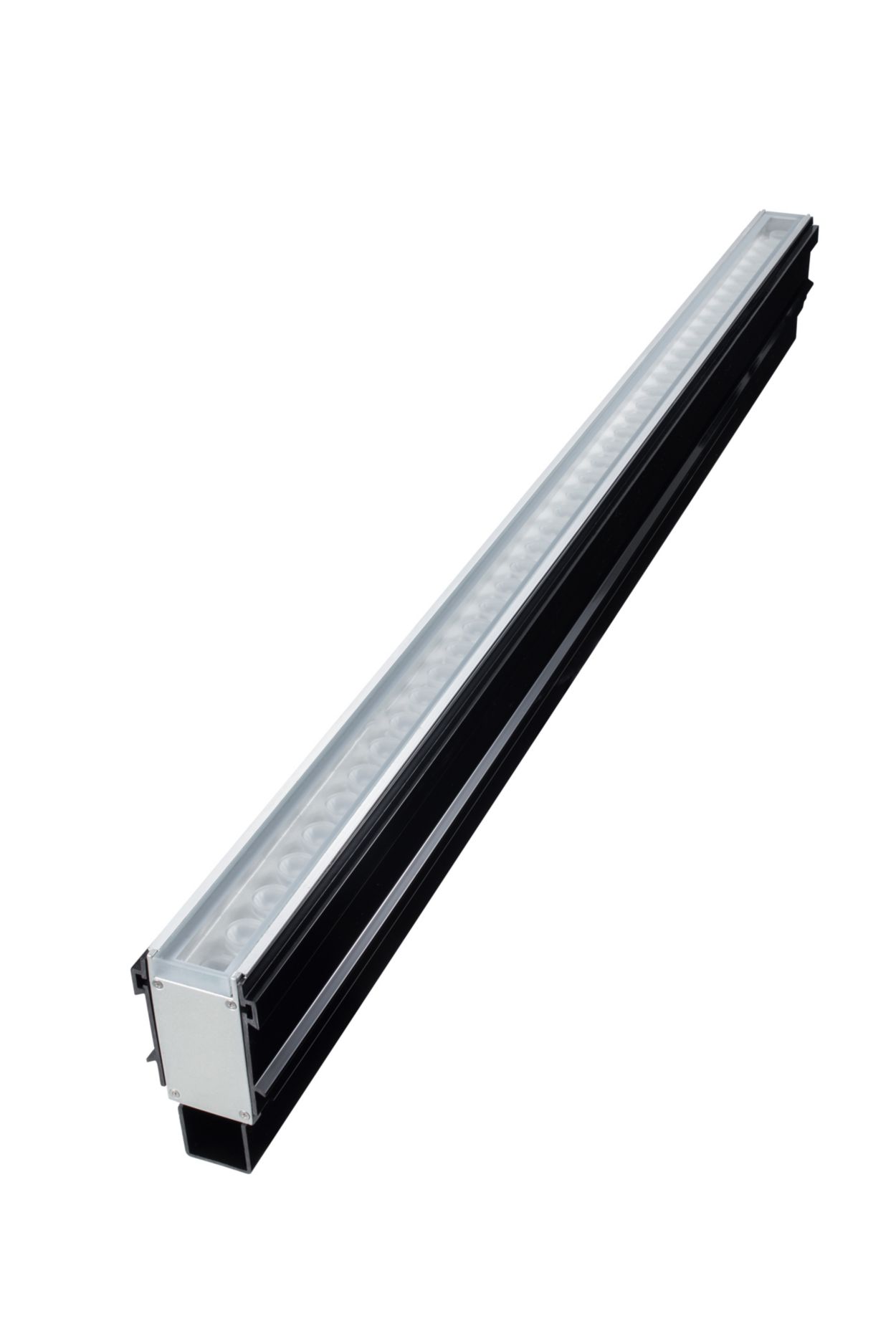

BBP420 LED 30K 24V B4/HC L120

Specifications Show all

General information

Light source color	830 warm white
Driver included	No
Optical cover/lens type	Lens
Control interface	-
Connection	-
Cable	2 cables 0.3m with connector 2-pole
Protection class IEC	Safety class III
Flammability mark	-
CE mark	CE mark

Operating and electrical

Input Voltage	24 V
Input Frequency	- Hz
Power Factor (Min)	1

Controls and dimming

Dimmable

No

Mechanical and housing

Housing Material	Aluminum
Optical cover/lens material	Acrylate
Color	Aluminum
Dimensions (Height x Width x Depth)	NaN x NaN x NaN mm

Approval and application

Ingress protection code	IP67  [ Dust penetration-protected, watertight]
Mech. impact protection code	IK10  [ 20 J vandal-resistant]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	1280 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	35.55555555555556 lm/W
Init. Corr. Color Temperature	3000 K
Init. Color Rendering Index	>80
Initial input power	36 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-40 to +50 °C

Product data

Full product code	871951452492799
Order product name	BBP420 LED 30K 24V B4/HC L120
EAN/UPC - Product	8719514524927
Order code	911401521381
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	2
Material Nr. (12NC)	911401521381
Net Weight (Piece)	5.190 kg
