    • TownGuide Performer – Designed around your needs

      BDP104 LED100/830 DW PCF SI CLO 62P
      LED
      BDP104 LED100/830 DW PCF SI CLO 62P

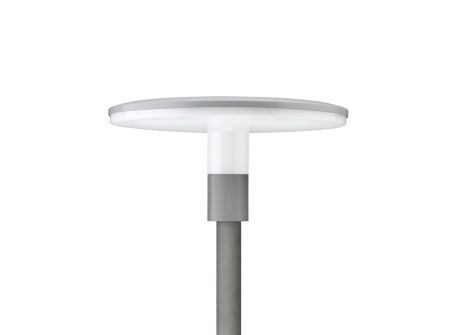

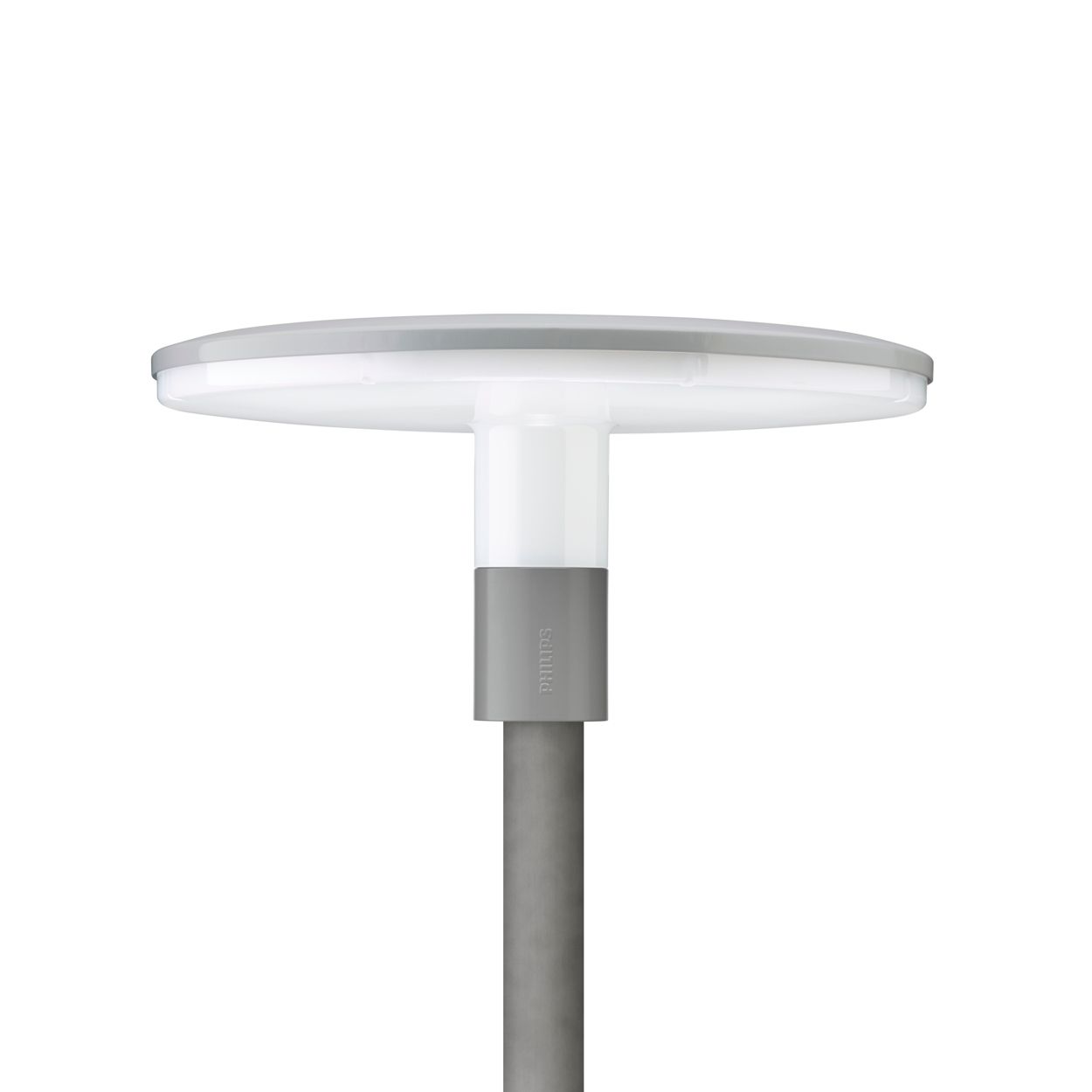

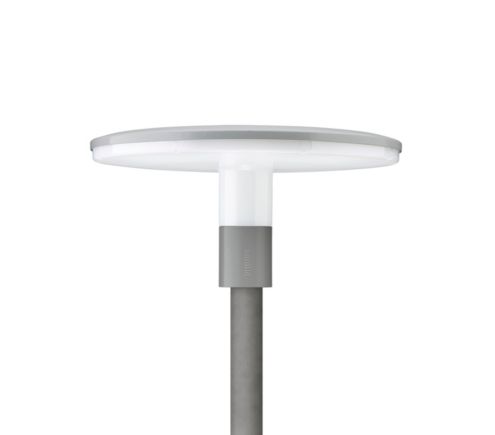

      TownGuide Performer

      BDP104 LED100/830 DW PCF SI CLO 62P

      Order code: 91088600

      Full product code: 871829191088600

    Specifications Show all

    General Information
    Number of light sources
    6  [ 6 pcs]
    Lamp family code
    LED100  [ LED module 10000 lm]
    Light source colour
    830 warm white
    Light source replaceable
    Yes
    Number of gear units
    1 unit
    Driver/power unit/transformer
    PSR-CLO  [ Power supply unit regulating with constant light output]
    Driver included
    Yes
    Optical cover/lens type
    PCF  [ Polycarbonate bowl/cover frosted]
    Luminaire light beam spread
    50° x 70°
    Embedded control
    CLO  [ Constant light output]
    Control interface
    -
    Light regulation
    -
    Cable
    -
    Protection class IEC
    Safety class I (I)
    Parts colour
    All parts colored
    Coating
    -
    Glow-wire test
    650/5  [ Temperature 650 °C, duration 5 s]
    Flammability mark
    NO  [ -]
    Safety device
    PCBC  [ PCB cover]
    CE mark
    CE mark
    ENEC mark
    ENEC mark
    Warranty period
    5 years
    Outdoor optic type
    Distribution wide
    Photocell
    No  [ -]
    Constant light output
    Yes
    Number of products on MCB
    10
    RoHS mark
    RoHS mark
    WEEE mark
    -
    LED engine type
    LED
    Product Family Code
    BDP104  [ TOWNGUIDE PERF T]
    Light Technical
    Upward light output ratio
    3
    Standard tilt angle post-top
    Standard tilt angle side entry
    -
    Operating and Electrical
    Input voltage
    220 to 240 V
    Input frequency
    50 to 60 Hz
    Initial CLO power consumption
    67 W
    Average CLO power consumption
    71 W
    End CLO power consumption
    76 W
    Inrush current
    47 A
    Inrush time
    0.250 ms
    Power factor (min.)
    0.99
    Power factor (nom.)
    0.94
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Housing material
    Aluminum
    Reflector material
    -
    Optic material
    Acrylate
    Optical cover/lens material
    Polycarbonate
    Fixation material
    Steel
    Mounting device
    62P  [ Post-top for diameter 62 mm]
    Optical cover/lens shape
    Narrow
    Optical cover/lens finish
    Frosted
    Torque
    15
    Overall height
    277 mm
    Overall diameter
    570 mm
    Effective projected area
    0.053 m²
    Approval and Application
    Ingress protection code
    IP66  [ Dust penetration-protected, jet-proof]
    Mech. impact protection code
    IK10  [ 20 J vandal-resistant]
    Initial Performance (IEC Compliant)
    Initial luminous flux
    3690 lm
    Luminous flux tolerance
    +/-7%
    Initial LED luminaire efficacy
    55 lm/W
    Init. Corr. colour temperature
    3000 K
    Init. colour rendering index
    80
    Initial chromaticity
    (0.43, 0.40) SDCM <5
    Initial input power
    76 W
    Power consumption tolerance
    +/-11%
    Application Conditions
    Ambient temperature range
    -40 to +35 °C
    Maximum dimming level
    Not applicable
    Product Data
    Full product code
    871829191088600
    Order product name
    BDP104 LED100/830 DW PCF SI CLO 62P
    EAN/UPC – product
    8718291910886
    Order code
    91088600
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    1
    Material no. (12NC)
    910500991149
    Net weight (piece)
    7.130 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation diagrams
     TOWNGUIDE PERF T - LED EconomyLine 10,000 lm
    TOWNGUIDE PERF T - LED EconomyLine 10,000 lm
    Photometrics
    OFPL1_BDP104PCF1xECO100830DW
    OFPL1_BDP104PCF1xECO100830DW
    Downloads
    Leaflets
    • Leaflet Localized commercial leaflet PDF 6.4 MB
    Green data
    Visuals
    Brochures
    Software plugins
    • IES OFMT1_BDP104PCF1xECO100830DW IES 61.7 kB
    • ULD OFDM1_BDP104PCF1xECO100830DW ULD 51.5 kB
    • Relux OFDM2_BDP104PCF1xECO100830DW ROLF 45.7 kB
    • LDT OFMT2_BDP104PCF1xECO100830DW LDT 44.7 kB
