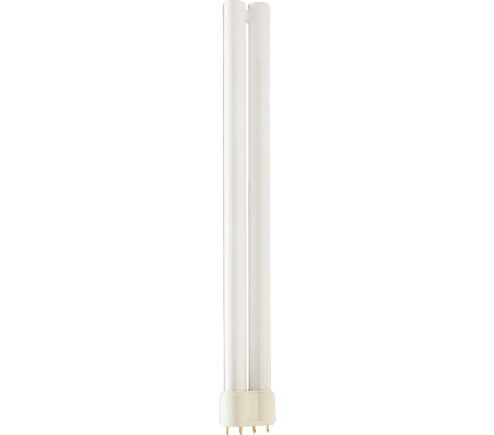

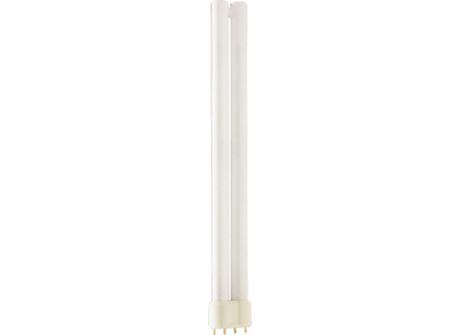

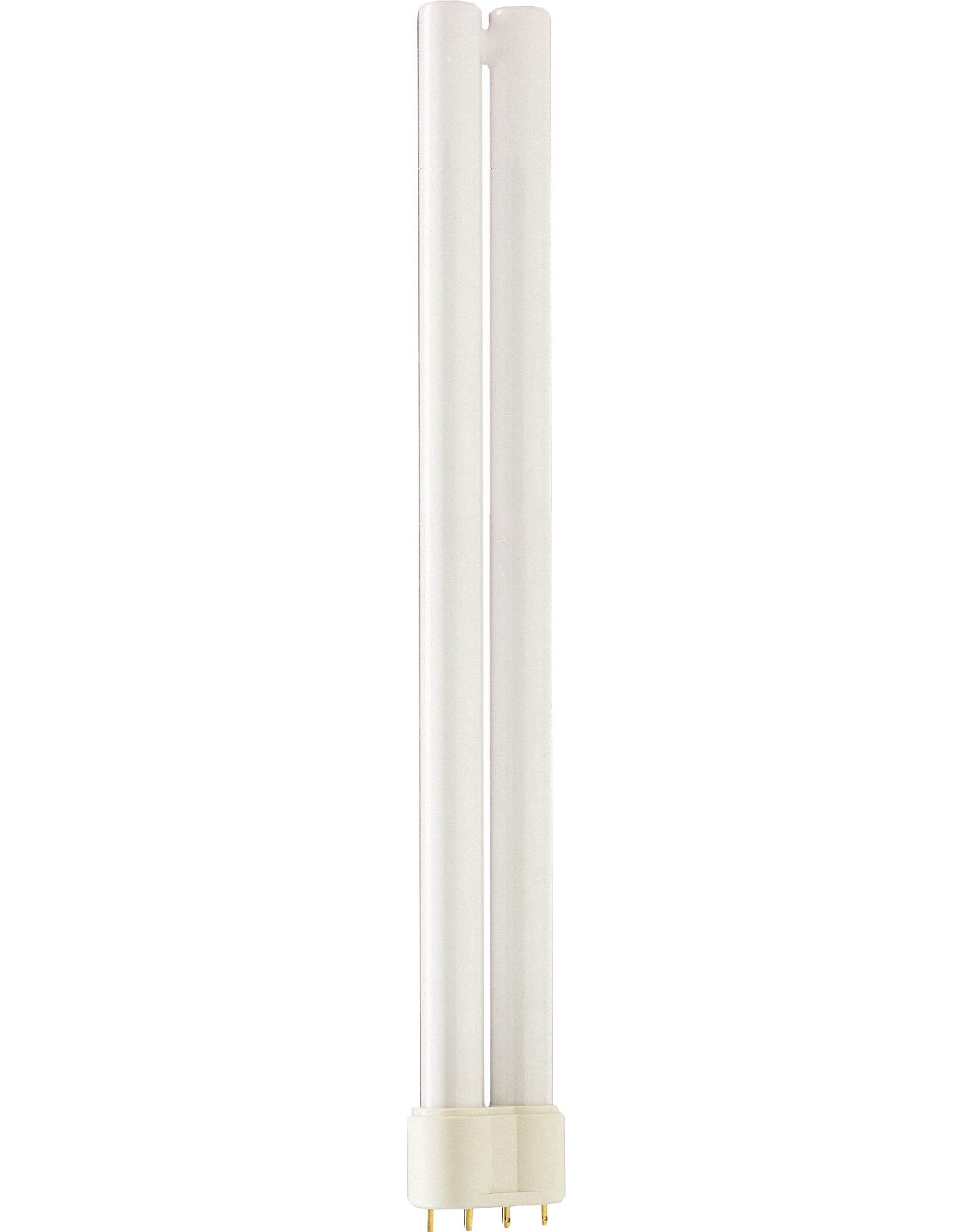

      MASTER PL-L 24W/840/4P 1CT/25
      MASTER PL-L 24W/840/4P 1CT/25
      MASTER PL-L 4 Pin

      MASTER PL-L 24W/840/4P 1CT/25

      Order code: 70672040

      Full product code: 871150070672040

      Downloads

      Data sheet
      Size:163.5 kB

      See all downloads

    Videos

    [trigger to render Video Gallery]

    Images

    Specifications Show all

    General Information
    Cap base
    2G11  [ 2G11]
    Life to 10% failures (nom.)
    10000 h
    Life to 50% failures (nom.)
    15000 h
    Life to 50% failures preheat (nom.)
    20000 h
    System description
    na  [ -]
    LSF 2000 h Rated
    99 %
    LSF 4000 h Rated
    98 %
    LSF 6000 h Rated
    96 %
    LSF 8000 h Rated
    94 %
    LSF 12000 h Rated
    80 %
    LSF Preheat 2000 h Rated
    99 %
    LSF Preheat 4000 h Rated
    99 %
    LSF Preheat 6000 h Rated
    98 %
    LSF Preheat 8000 h Rated
    97 %
    LSF Preheat 16000 h Rated
    82 %
    LSF Preheat 20000 h Rated
    50 %
    Light Technical
    Colour code
    841  [ CCT of 4100K (841)]
    Luminous flux (nom.)
    1800 lm
    Luminous flux (rated) (nom.)
    1800 lm
    Colour designation
    Cool White (CW)
    Chromaticity coordinate X (nom.)
    380
    Chromaticity coordinate Y (nom.)
    380
    Correlated colour temperature (nom.)
    4000 K
    Luminous efficacy (rated) (nom.)
    75 lm/W
    Color rendering index (nom.)
    82
    LLMF 2000 h Rated
    94 %
    LLMF 4000 h Rated
    93 %
    LLMF 6000 h Rated
    92 %
    LLMF 8000 h Rated
    91 %
    LLMF 12000 h Rated
    90 %
    LLMF 16000 h Rated
    90 %
    LLMF 20000 h Rated
    90 %
    Operating and Electrical
    Power (Rated) (Nom)
    24.0 W
    Lamp current (nom.)
    0.345 A
    Temperature
    Design temperature (nom.)
    30 °C
    Controls and Dimming
    Dimmable
    Yes
    Mechanical and Housing
    Cap base information
    4P
    Approval and Application
    Energy efficiency label (EEL)
    A
    Mercury (Hg) content (nom.)
    2.0 mg
    Energy Consumption kWh/1000 h
    26 kWh
    Product Data
    Full product code
    871150070672040
    Order product name
    MASTER PL-L 24W/840/4P 1CT/25
    EAN/UPC – product
    8711500706720
    Order code
    70672040
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    25
    Material no. (12NC)
    927903208470
    Net weight (piece)
    82.000 g
    ILCOS Code
    FSD-24/40/1B-E-2G11

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    2G11
    2G11
    Photometrics
    Lightcolour /840
    Lightcolour /840
