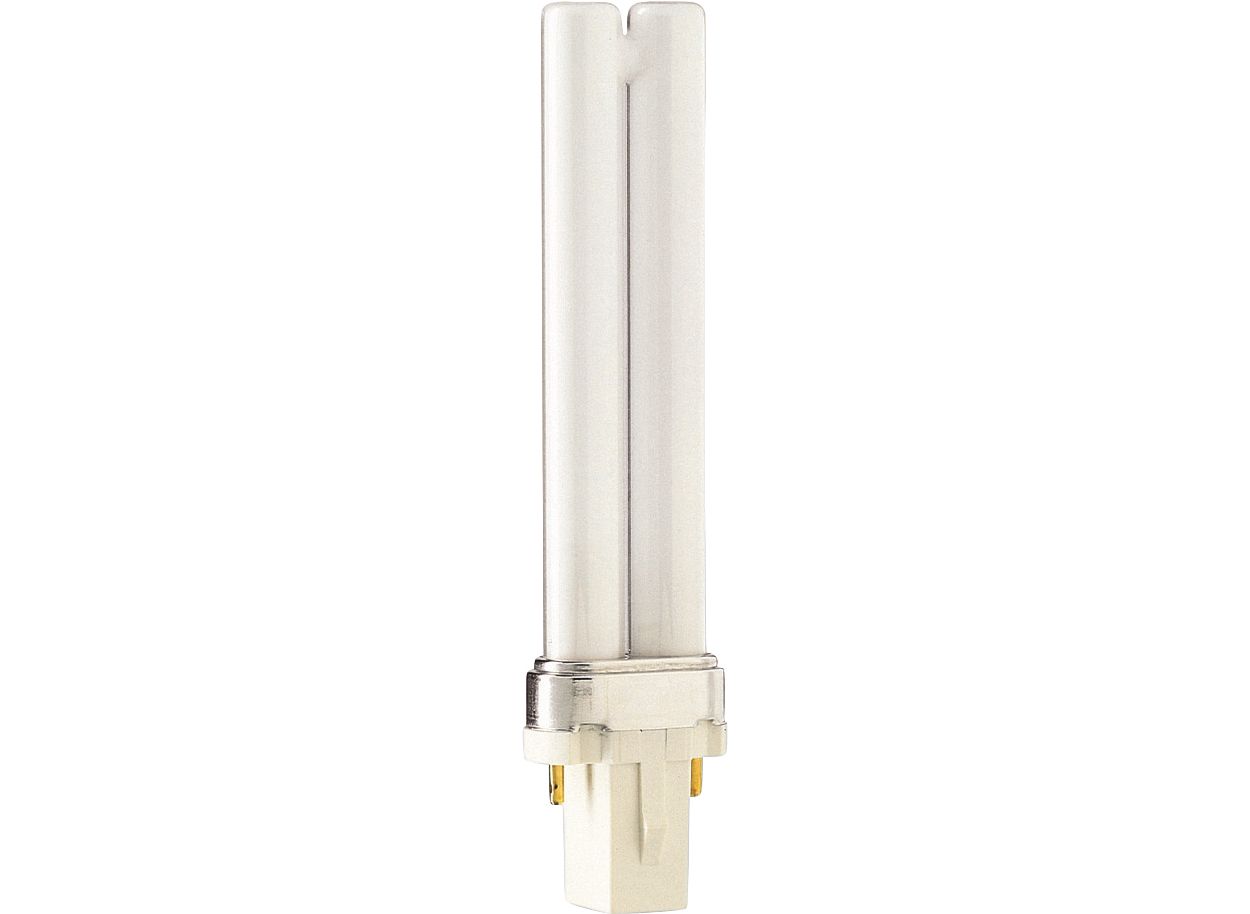

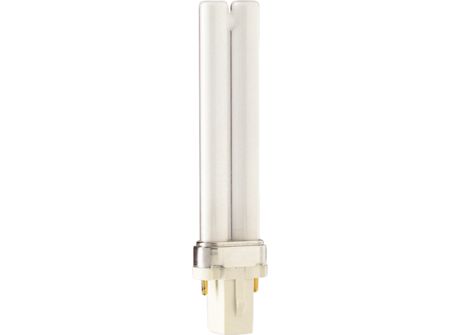

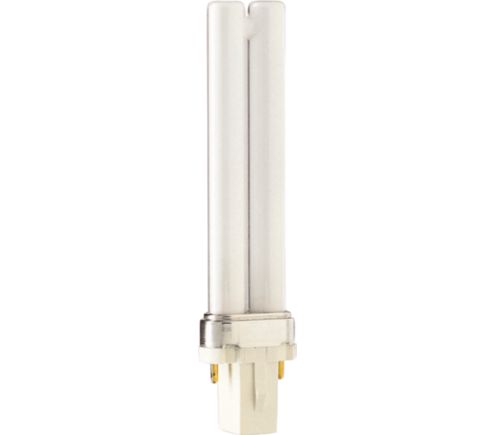

      MASTER PL-S 7W/840/2P 1CT/5X10BOX
      MASTER PL-S 7W/840/2P 1CT/5X10BOX
      MASTER PL-S 2 Pin

      MASTER PL-S 7W/840/2P 1CT/5X10BOX

      Order code: 26065970

      Full product code: 871150026065970

      Downloads

      Data sheet
      Size:238.8 kB

      See all downloads

    Videos

    [trigger to render Video Gallery]

    Images

    Specifications Show all

    General Information
    Cap base
    G23  [ G23]
    Life to 10% failures (nom.)
    6500 h
    Life to 50% failures (nom.)
    10000 h
    LSF 2000 h Rated
    99 %
    LSF 4000 h Rated
    98 %
    LSF 6000 h Rated
    95 %
    LSF 8000 h Rated
    86 %
    Light Technical
    Colour code
    841  [ CCT of 4100K (841)]
    Luminous flux (nom.)
    400 lm
    Luminous flux (rated) (nom.)
    405 lm
    Colour designation
    Cool White (CW)
    Chromaticity coordinate X (nom.)
    381
    Chromaticity coordinate Y (nom.)
    379
    Correlated colour temperature (nom.)
    4000 K
    Luminous efficacy (rated) (nom.)
    57 lm/W
    Color rendering index (nom.)
    82
    LLMF 2000 h Rated
    94 %
    LLMF 4000 h Rated
    91 %
    LLMF 6000 h Rated
    89 %
    LLMF 8000 h Rated
    86 %
    Operating and Electrical
    Power (Rated) (Nom)
    7 W
    Lamp current (nom.)
    0.175 A
    Temperature
    Design temperature (nom.)
    28 °C
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Cap base information
    2P
    Approval and Application
    Energy efficiency label (EEL)
    B
    Mercury (Hg) content (nom.)
    1.4 mg
    Energy Consumption kWh/1000 h
    9 kWh
    Product Data
    Full product code
    871150026065970
    Order product name
    MASTER PL-S 7W/840/2P 1CT/5X10BOX
    EAN/UPC – product
    8711500260659
    Order code
    26065970
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    50
    Material no. (12NC)
    927935684011
    Net weight (piece)
    26.000 g
    ILCOS Code
    FSD-7/40/1B-I-G23

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    G23
    G23
    Performance Diagrams
    Photometrics
    Lightcolour /840
