    • The original!

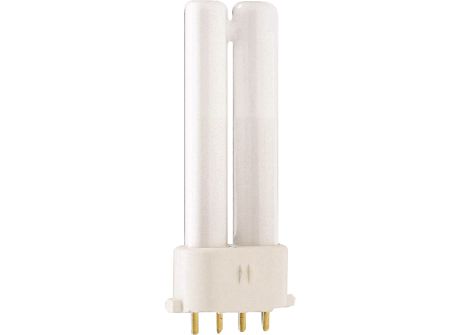

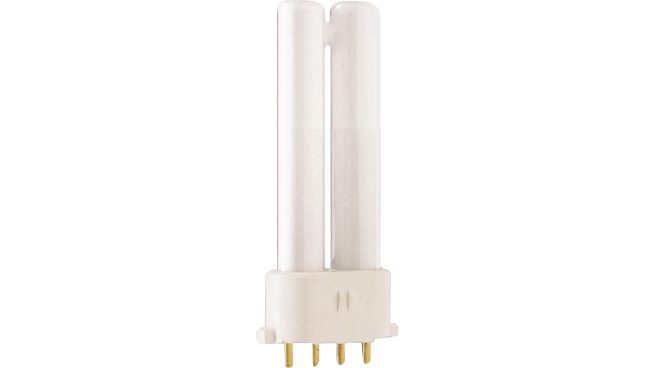

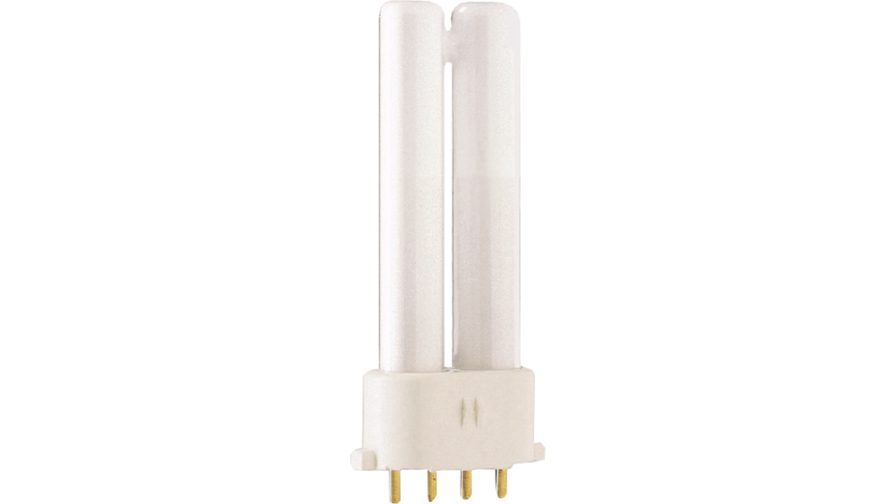

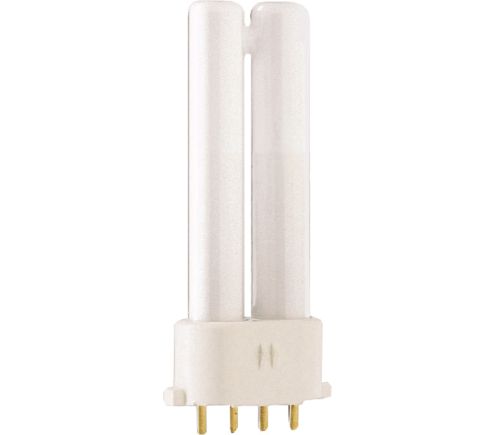

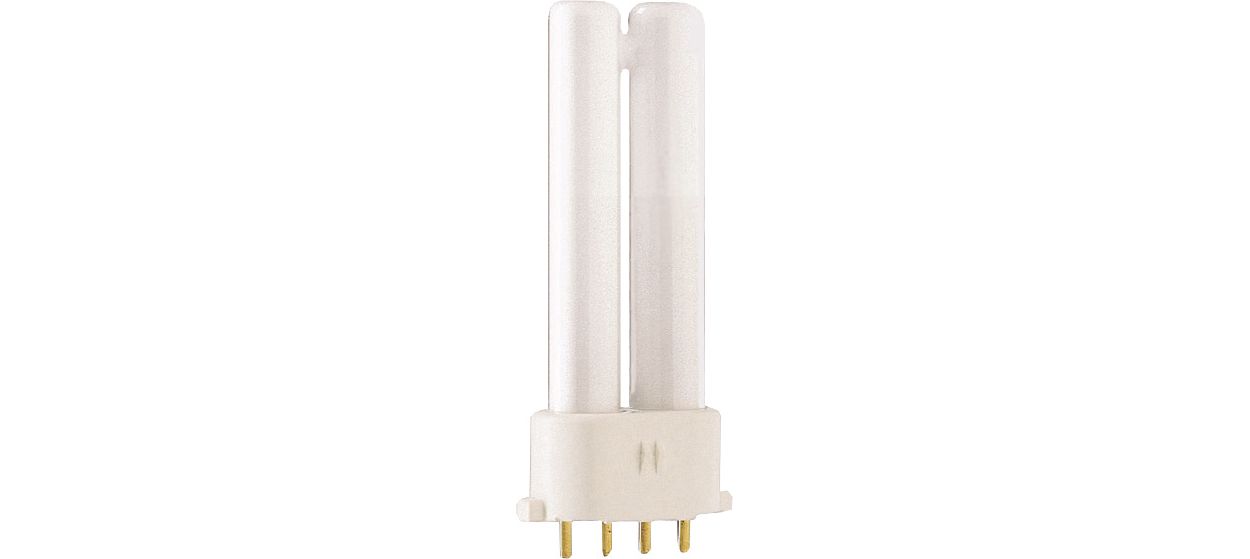

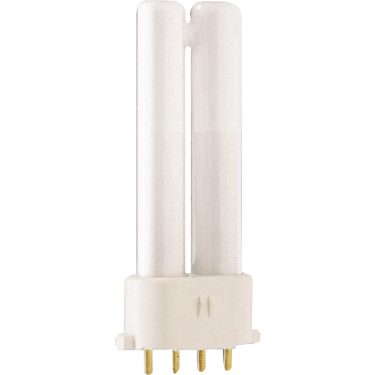

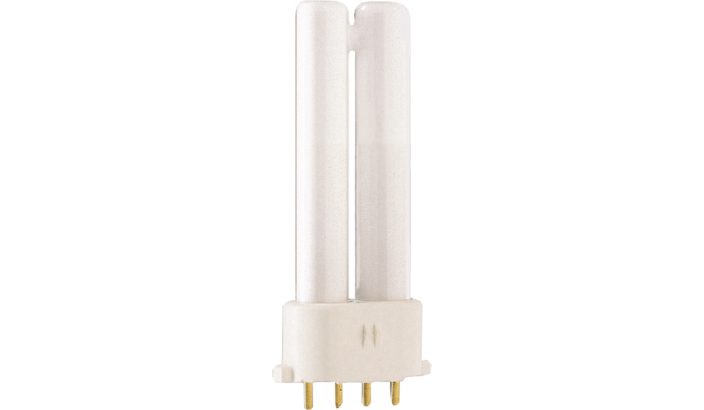

      MASTER PL-S 5W/827/4P 1CT/5X10BOX
      MASTER PL-S 5W/827/4P 1CT/5X10BOX
      MASTER PL-S 4 Pin

      MASTER PL-S 5W/827/4P 1CT/5X10BOX

      Order code: 26051270

      Full Product Code: 871150026051270

      Downloads

      Data sheet
      Size:241.5 kB

      See all downloads

    Videos

    [trigger to render Video Gallery]

    Images

    Specifications Show all

    General Information
    Cap base
    2G7  [ 2G7]
    Life to 50% failures preheat (nom.)
    13000 h
    LSF Preheat 2000 h Rated
    99 %
    LSF Preheat 4000 h Rated
    98 %
    LSF Preheat 6000 h Rated
    97 %
    LSF Preheat 8000 h Rated
    92 %
    LSF Preheat 16000 h Rated
    30 %
    Light Technical
    Colour code
    827  [ CCT of 2700K]
    Luminous flux (nom.)
    250 lm
    Luminous flux (rated) (nom.)
    259 lm
    Colour designation
    Incandescent White
    Chromaticity coordinate X (nom.)
    455
    Chromaticity coordinate Y (nom.)
    417
    Correlated colour temperature (nom.)
    2700 K
    Luminous efficacy (rated) (nom.)
    52 lm/W
    Color rendering index (nom.)
    82
    LLMF 2000 h Rated
    95 %
    LLMF 4000 h Rated
    92 %
    LLMF 6000 h Rated
    90 %
    LLMF 8000 h Rated
    88 %
    LLMF 12000 h Rated
    86 %
    Operating and Electrical
    Power (Rated) (Nom)
    5.4 W
    Lamp current (nom.)
    0.180 A
    Temperature
    Design temperature (nom.)
    28 °C
    Controls and Dimming
    Dimmable
    Yes
    Mechanical and Housing
    Cap base information
    4P
    Approval and Application
    Energy efficiency label (EEL)
    A
    Mercury (Hg) content (nom.)
    1.4 mg
    Energy Consumption kWh/1000 h
    6 kWh
    Product Data
    Full product code
    871150026051270
    Order product name
    MASTER PL-S 5W/827/4P 1CT/5X10BOX
    EAN/UPC – product
    8711500260512
    Order code
    26051270
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    50
    Material no. (12NC)
    927935482711
    Net weight (piece)
    20.000 g
    ILCOS Code
    FSD-5/27/1B-E-2G7

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    2G7
    2G7
    Performance Diagrams
    Photometrics
    Lightcolour /827
    Lightcolour /827
