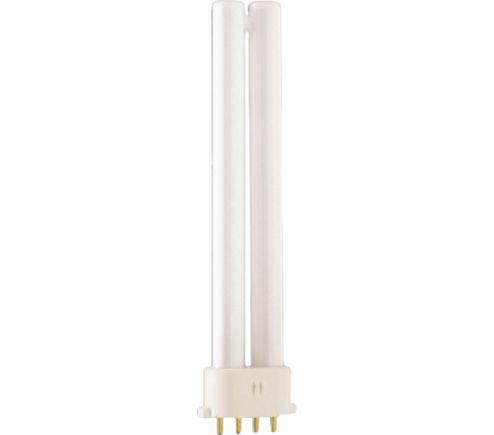

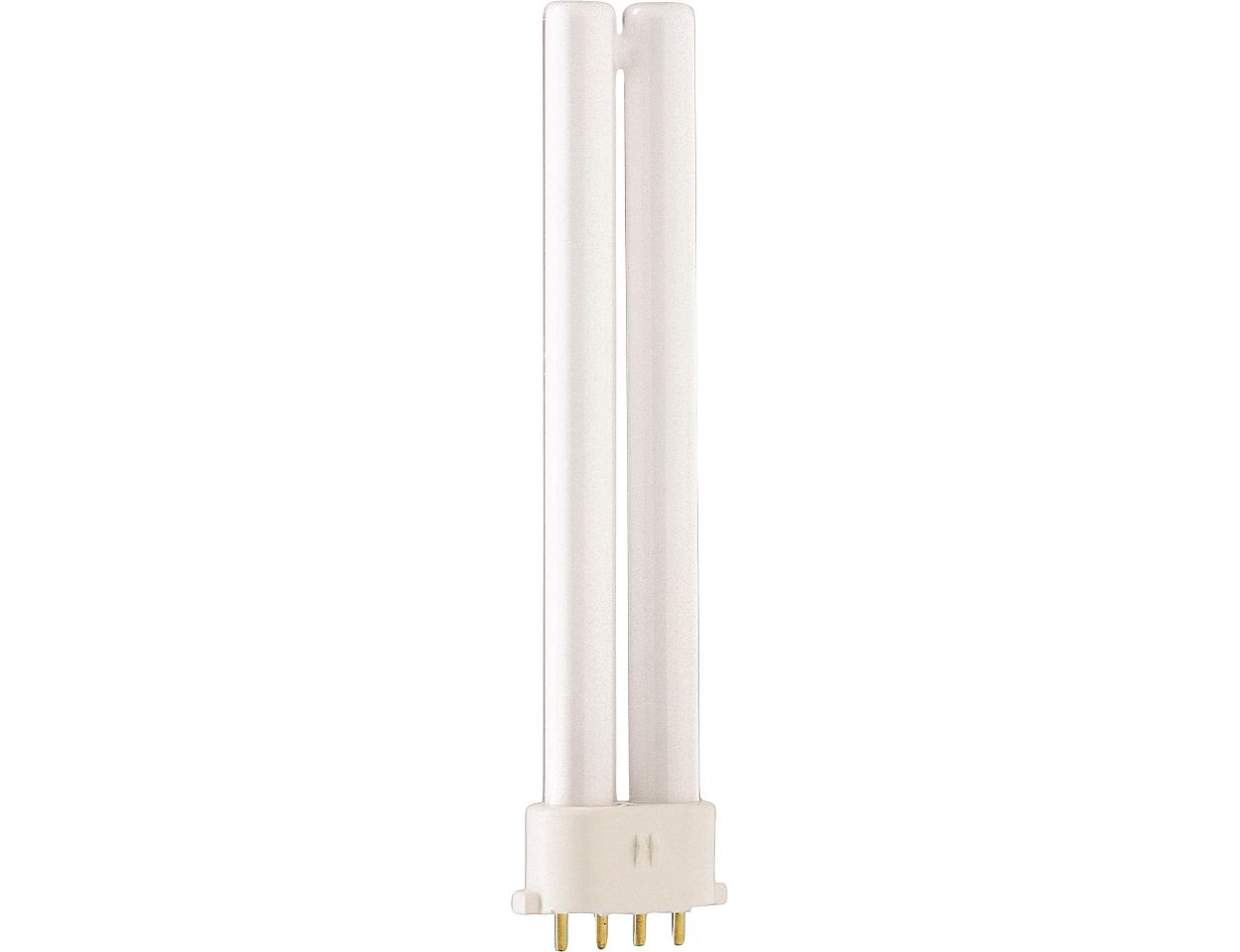

      MASTER PL-S 9W/827/4P 1CT/5X10BOX
      MASTER PL-S 9W/827/4P 1CT/5X10BOX
      MASTER PL-S 4 Pin

      MASTER PL-S 9W/827/4P 1CT/5X10BOX

      Downloads

      Data sheet
      Size:408.0 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Lamp Current (Nom)
    0.170 A
    Approval and Application
    Mercury (Hg) Content (Max)
    1.4 mg
    Energy Consumption kWh/1000 h
    9 kWh
    Mercury (Hg) Content (Nom)
    1.4 mg
    EPREL Registration Number
    423592
    Energy Efficiency Class
    G
    Product Data
    Full product name
    MASTER PL-S 9W/827/4P 1CT/5X10BOX
    Full product code
    871150026090170
    Material number (12NC)
    927936282711
    Numerator - Packs per outer box
    50
    Numerator - Quantity Per Pack
    1
    Order code
    927936282711
    Order product name
    MASTER PL-S 9W/827/4P 1CT/5X10BOX
    EAN/UPC - Case
    8711500260925
    Controls and Dimming
    Dimmable
    Yes
    General Information
    Cap-Base
    2G7  [2G7]
    Flux measurement reference
    Sphere
    Light Technical
    Luminous Efficacy (rated) (Nom)
    73 lm/W
    Correlated Color Temperature (Nom)
    2700 K
    Color Code
    827  [CCT of 2700K]
    Chromaticity Coordinate X (Nom)
    0.463
    Chromaticity Coordinate Y (Nom)
    0.42
    Color rendering index (CRI)
    82
    Color Designation
    Incandescent White
    Luminous Flux
    600 lumen
    Installation Diagrams
     9 W 2G7
    9 W 2G7
    2G7
    2G7
    Performance Diagrams
    Lumen Maintenance Diagram - MASTER PL-S 9W/827/4P 1CT/5X10BOX
    Lumen Maintenance Diagram - MASTER PL-S 9W/827/4P 1CT/5X10BOX
    Service Lifetime
    Service Lifetime
    Service Lifetime
    Service Lifetime
    Life Expectancy Diagram - MASTER PL-S 9W/827/4P 1CT/5X10BOX
    Life Expectancy Diagram - MASTER PL-S 9W/827/4P 1CT/5X10BOX
    Life Expectancy Diagram - MASTER PL-S 9W/827/4P 1CT/5X10BOX
    Life Expectancy Diagram - MASTER PL-S 9W/827/4P 1CT/5X10BOX
    Photometrics
    Spectral Power Distribution Colour - MASTER PL-S 9W/827/4P 1CT/5X10BOX
    Spectral Power Distribution Colour - MASTER PL-S 9W/827/4P 1CT/5X10BOX
