    • Most reliable technology!

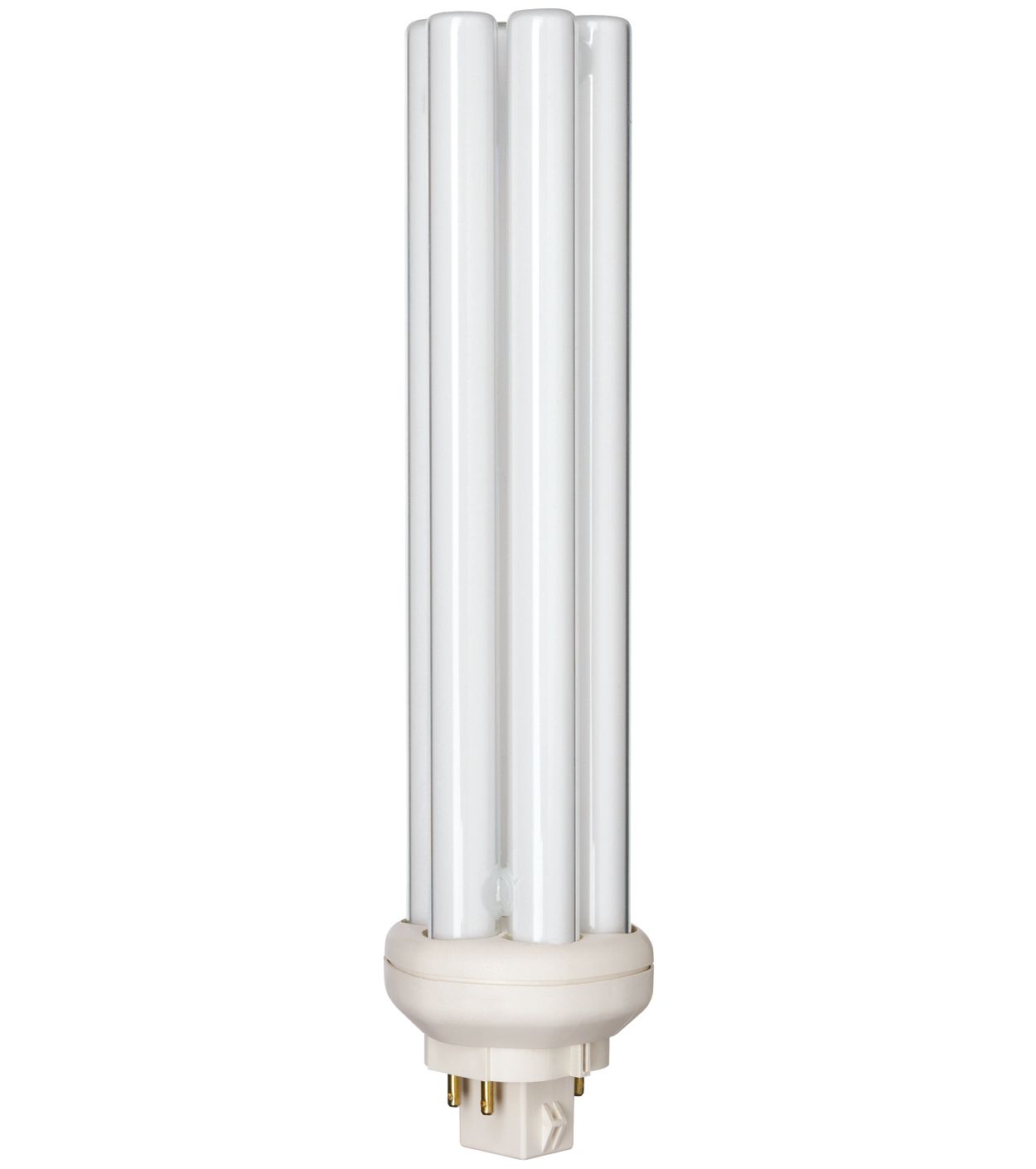

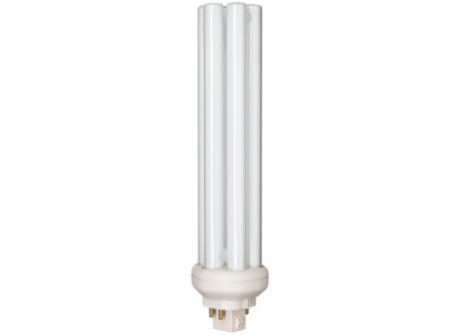

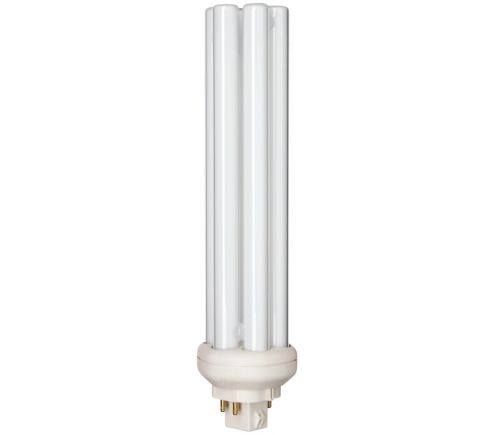

      MASTER PL-T TOP 57W/840/4P 1CT/5X10BOX
      MASTER PL-T TOP 57W/840/4P 1CT/5X10BOX
      MASTER PL-T TOP 4 Pin

      MASTER PL-T TOP 57W/840/4P 1CT/5X10BOX

      Downloads

      Data sheet
      Size:437.7 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Lamp Current (Nom)
    0.320 A
    Approval and Application
    Mercury (Hg) Content (Max)
    1.4 mg
    Energy Consumption kWh/1000 h
    57 kWh
    Mercury (Hg) Content (Nom)
    1.4 mg
    EPREL Registration Number
    423334
    Energy Efficiency Class
    G
    Product Data
    Full product name
    MASTER PL-T TOP 57W/840/4P 1CT/5X10BOX
    Full product code
    871150061034870
    Material number (12NC)
    927912484069
    Numerator - Packs per outer box
    50
    Numerator - Quantity Per Pack
    1
    Order code
    927912484069
    Order product name
    MASTER PL-T TOP 57W/840/4P 1CT/5X10BOX
    EAN/UPC - Case
    8711500610409
    Controls and Dimming
    Dimmable
    Yes
    General Information
    Cap-Base
    GX24Q-5  [GX24q-5]
    Flux measurement reference
    Sphere
    Light Technical
    Correlated Color Temperature (Nom)
    4000 K
    Luminous Efficacy (Rated) (Min)
    76 lm/W
    Color Code
    840  [CCT of 4000K]
    Chromaticity Coordinate X (Nom)
    0.38
    Chromaticity Coordinate Y (Nom)
    0.38
    Color rendering index (CRI)
    80
    Color Designation
    Cool White (CW)
    Luminous Flux
    4,000 lumen
    Installation Diagrams
    GX24q-5, 4P
    GX24q-5, 4P
    GX24q-5
    GX24q-5
    Performance Diagrams
    Lumen Maintenance Diagram - MASTER PL-T TOP 57W/840/4P 1CT/5X10BOX
    Lumen Maintenance Diagram - MASTER PL-T TOP 57W/840/4P 1CT/5X10BOX
    Service Lifetime
    Service Lifetime
    Service Lifetime
    Service Lifetime
    Life Expectancy Diagram - MASTER PL-T TOP 57W/840/4P 1CT/5X10BOX
    Life Expectancy Diagram - MASTER PL-T TOP 57W/840/4P 1CT/5X10BOX
    Life Expectancy Diagram - MASTER PL-T TOP 57W/840/4P 1CT/5X10BOX
    Life Expectancy Diagram - MASTER PL-T TOP 57W/840/4P 1CT/5X10BOX
    Photometrics
    Spectral Power Distribution Colour - MASTER PL-T TOP 57W/840/4P 1CT/5X10BOX
    Spectral Power Distribution Colour - MASTER PL-T TOP 57W/840/4P 1CT/5X10BOX
