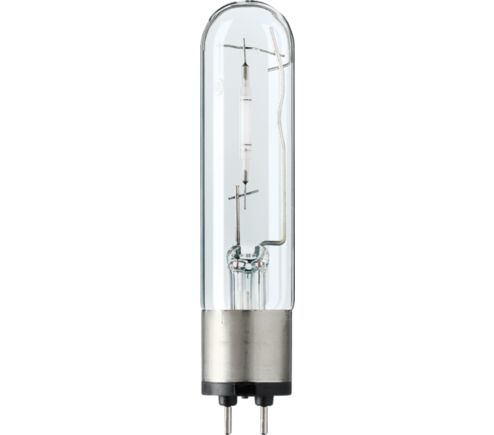

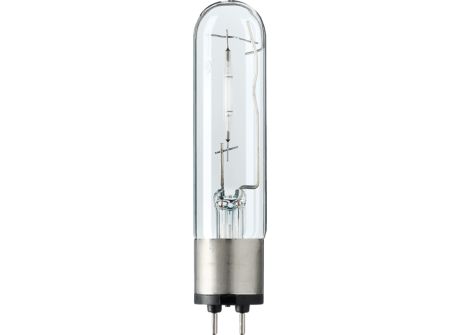

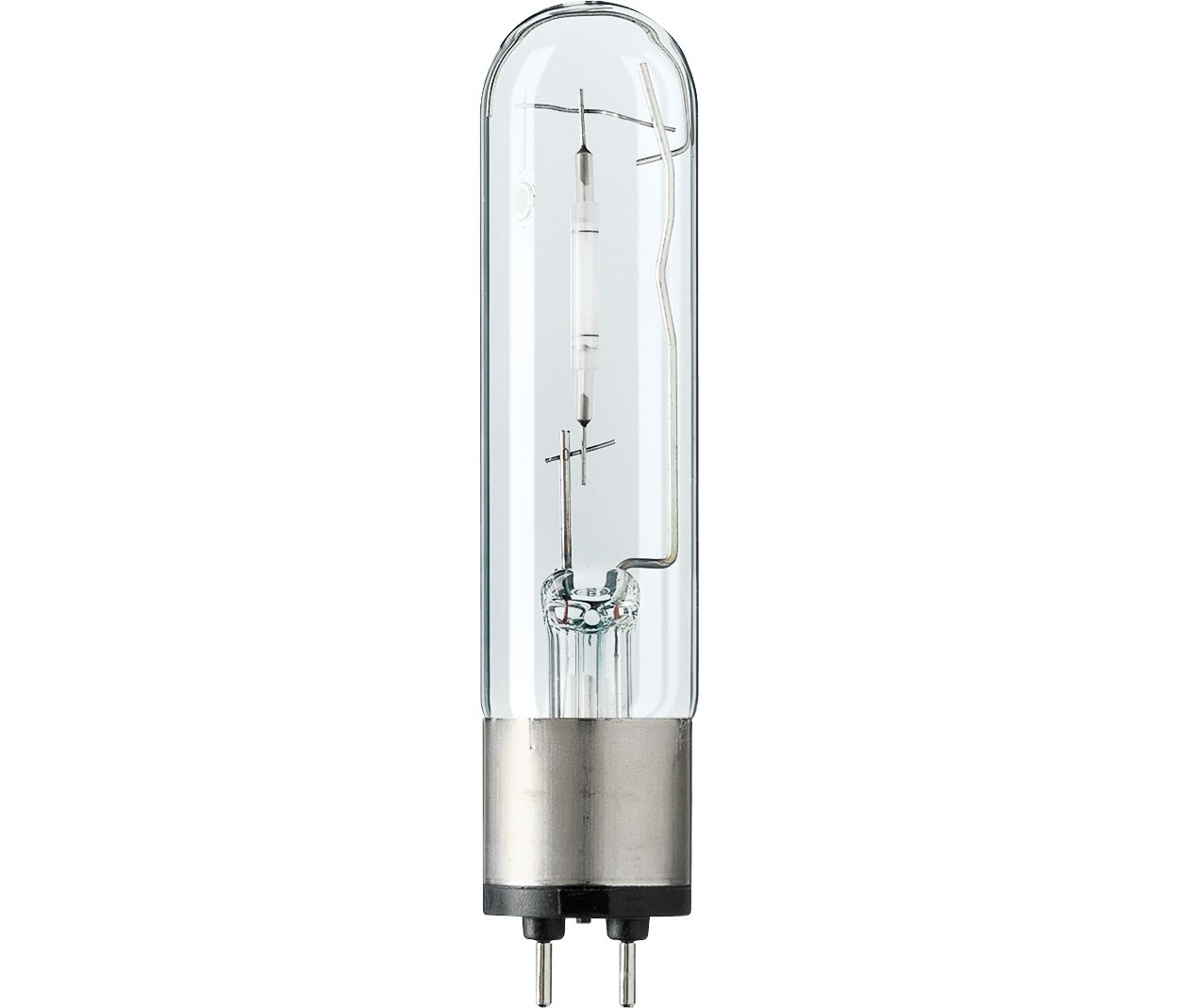

MASTER SDW-T 35W/825 PG12-1 1SL/12

Specifications Show all

General Information

Cap base	PG12-1  [ PG12-1]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Life to 5% failures (nom.)	8000 h
Life to 20% failures (nom.)	12000 h
Life to 50% failures (nom.)	15000 h
Useful life (nom.)	10000 h
ANSI code HID	-
System description	High Voltage  [ 200-250V (HV)]

Light Technical

Colour code	825  [ CCT of 2500K]
Luminous flux (rated) (nom.)	1300 lm
Colour designation	Golden White
Lumen maintenance 2,000 hours (nom.)	95 %
Lumen maintenance 5,000 hours (nom.)	90 %
Chromaticity coordinate X (nom.)	479
Chromaticity coordinate Y (nom.)	417
Correlated colour temperature (nom.)	2500 K
Luminous efficacy (rated) (nom.)	40 lm/W
Color rendering index (nom.)	83

Operating and Electrical

Power (Rated) (Nom)	33.0 W
Lamp current run-up (max.)	1.0 A
Lamp current (EM) (nom.)	0.48 A
Ignition peak voltage (max.)	5000 V
Ignition supply voltage (min.)	205 V
Voltage (Max)	106 V
Voltage (Min)	86 V
Voltage (Nom)	96 V

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb finish	Clear (CL)
Bulb material	Soft Glass

Approval and Application

Energy efficiency label (EEL)	B
Mercury (Hg) content (nom.)	3.8 mg
Energy Consumption kWh/1000 h	36 kWh

Luminaire Design Requirements

Bulb temperature (max.)	350 °C
Cap base temperature (max.)	120 °C

Product Data

Full product code	871150073402015
Order product name	MASTER SDW-T 35W/825 PG12-1 1SL/12
EAN/UPC – product	8711500734020
Order code	73402015
Numerator – quantity per pack	1
Numerator – packs per outer box	12
Material no. (12NC)	928153809230
Net weight (piece)	0.048 kg
ILCOS Code	STH-35-H/E-PG12
