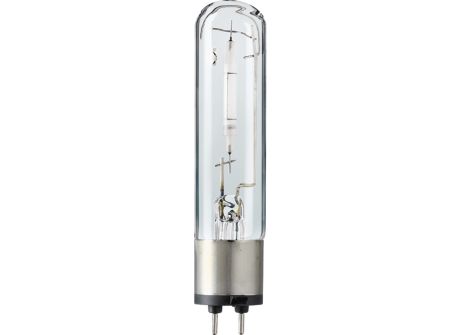

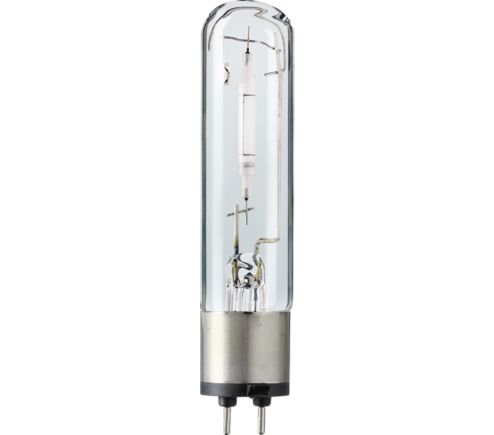

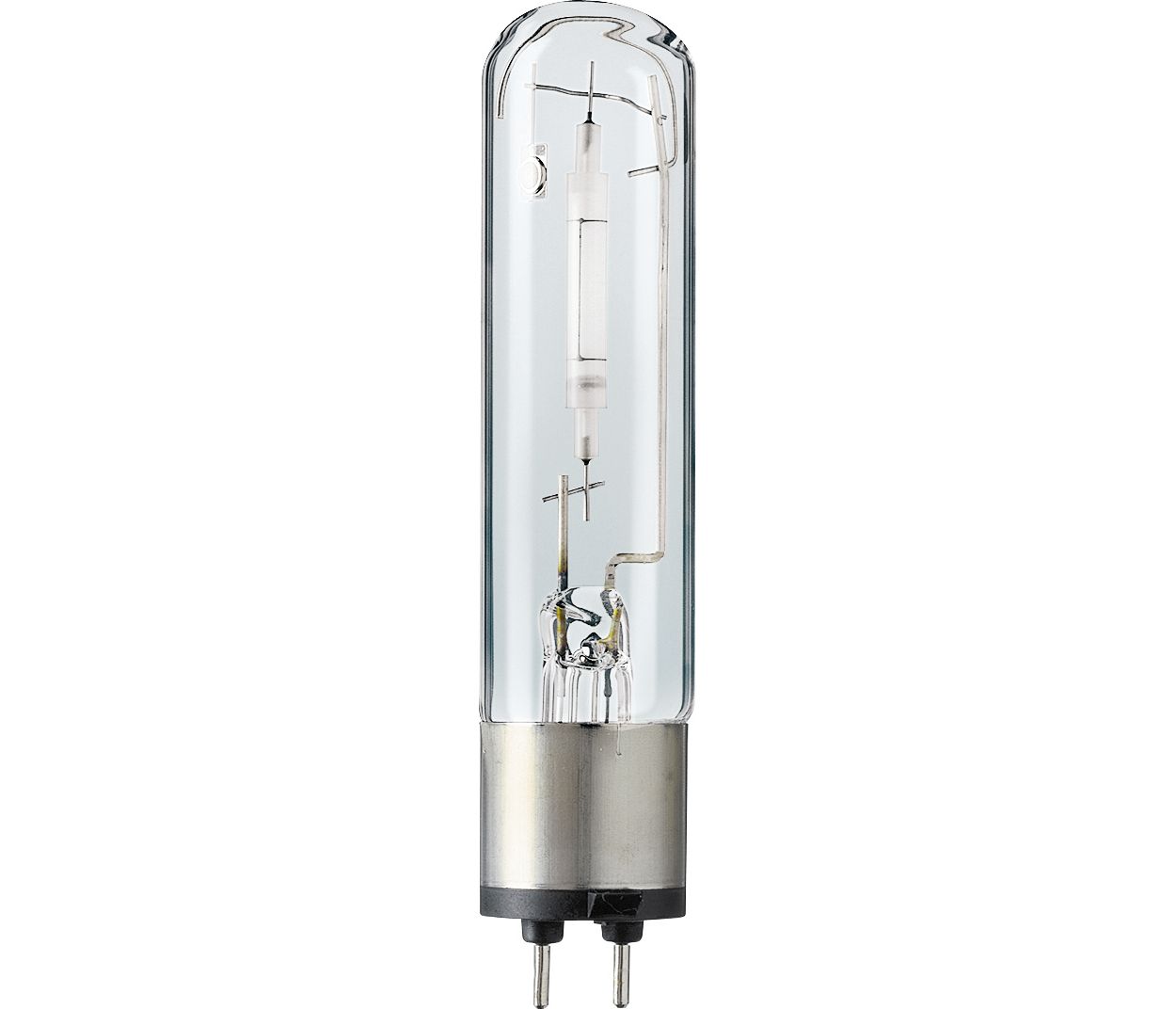

      MASTER SDW-T 100W/825 PG12-1 1SL/12
      MASTER SDW-T 100W/825 PG12-1 1SL/12
      MASTER SDW-T

      MASTER SDW-T 100W/825 PG12-1 1SL/12

      Order code: 73404415

      Full product code: 871150073404415

      Downloads

      Data sheet
      Size:286.6 kB

      See all downloads

    Videos

    [trigger to render Video Gallery]

    Images

    Specifications Show all

    General Information
    Cap base
    PG12-1  [ PG12-1]
    Operating position
    UNIVERSAL  [ Any or Universal (U)]
    Life to 5% failures (nom.)
    5000 h
    Life to 20% failures (nom.)
    10000 h
    Life to 50% failures (nom.)
    15000 h
    Useful life (nom.)
    10000 h
    ANSI code HID
    -
    System description
    High Voltage  [ 200-250V (HV)]
    Light Technical
    Colour code
    825  [ CCT of 2500K]
    Luminous flux (rated) (nom.)
    5000 lm
    Colour designation
    Golden White
    Lumen maintenance 2,000 hours (nom.)
    85 %
    Lumen maintenance 5,000 hours (nom.)
    80 %
    Chromaticity coordinate X (nom.)
    464
    Chromaticity coordinate Y (nom.)
    404
    Correlated colour temperature (nom.)
    2500 K
    Luminous efficacy (rated) (nom.)
    52 lm/W
    Color rendering index (nom.)
    83
    Operating and Electrical
    Power (Rated) (Nom)
    97.0 W
    Lamp current run-up (max.)
    2.8 A
    Lamp current (EM) (nom.)
    1.31 A
    Ignition peak voltage (max.)
    5000 V
    Ignition supply voltage (min.)
    205 V
    Voltage (Max)
    108 V
    Voltage (Min)
    88 V
    Voltage (Nom)
    98 V
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Bulb finish
    Clear (CL)
    Bulb material
    Hard Glass
    Approval and Application
    Energy efficiency label (EEL)
    B
    Mercury (Hg) content (nom.)
    11 mg
    Energy Consumption kWh/1000 h
    106 kWh
    Luminaire Design Requirements
    Bulb temperature (max.)
    450 °C
    Cap base temperature (max.)
    120 °C
    Product Data
    Full product code
    871150073404415
    Order product name
    MASTER SDW-T 100W/825 PG12-1 1SL/12
    EAN/UPC – product
    8711500734044
    Order code
    73404415
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    12
    Material no. (12NC)
    928154109227
    Net weight (piece)
    0.055 kg
    ILCOS Code
    STH-100-H/E-PG12

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    PG12-1
    PG12-1
