      MST SDW-TG MINI 50W/825 GX12-1 1CT/12
      MST SDW-TG MINI 50W/825 GX12-1 1CT/12

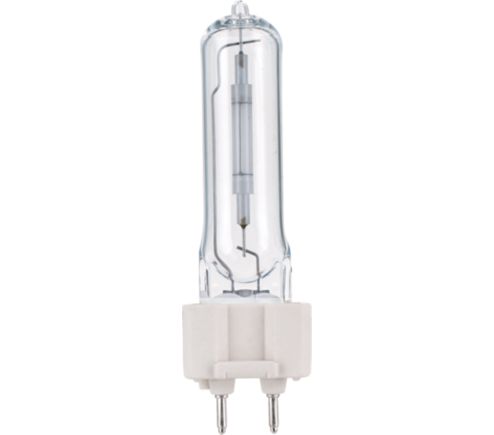

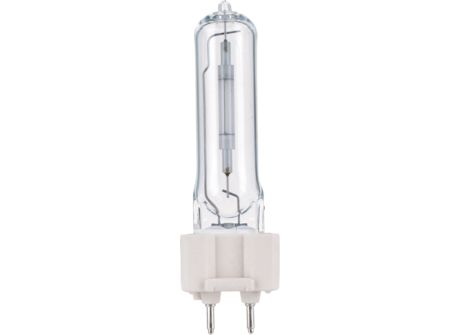

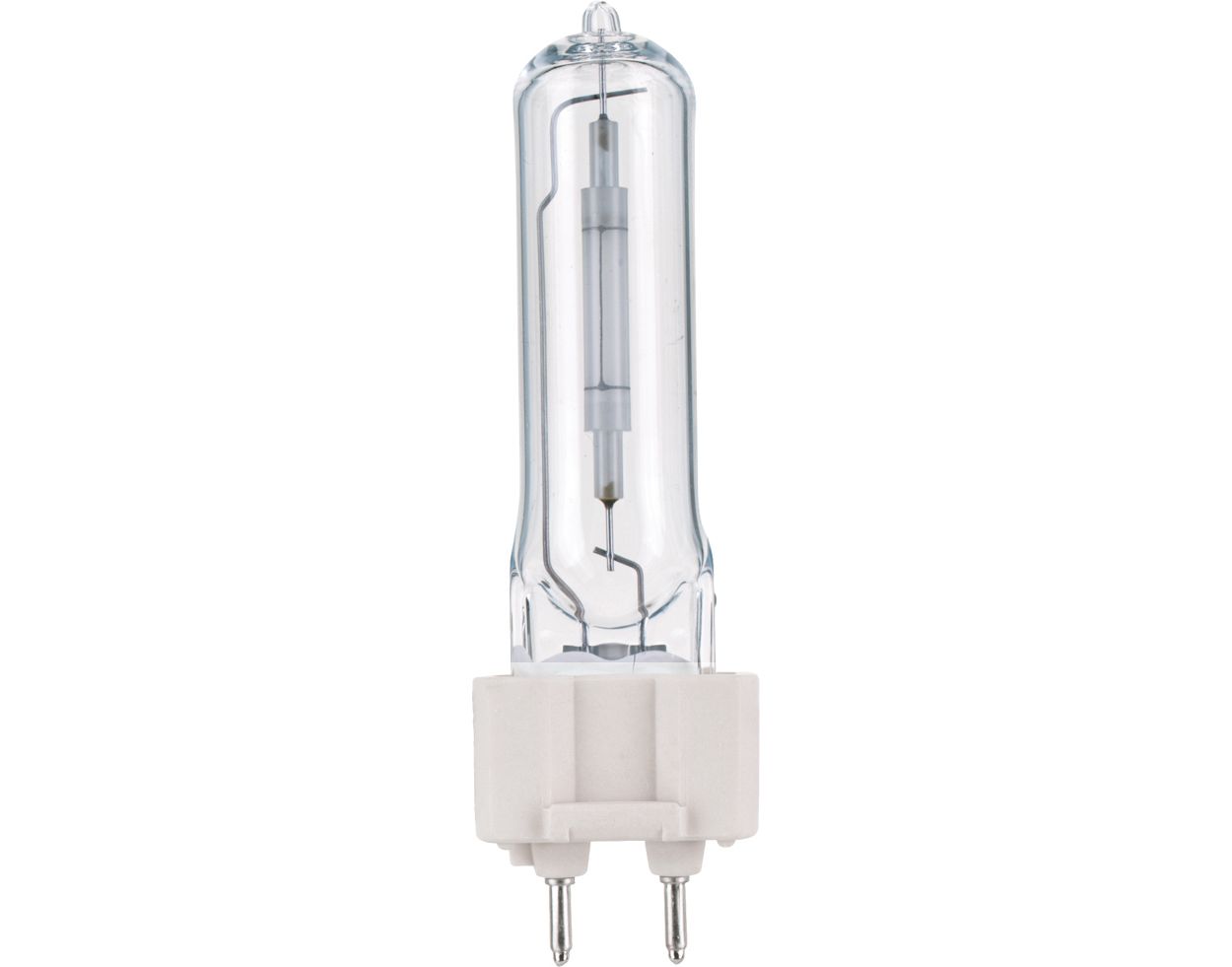

      MASTER SDW-TG Mini

      MST SDW-TG MINI 50W/825 GX12-1 1CT/12

      Order code: 20323615

      Full product code: 871150020323615

      Downloads

      Data sheet
      Size:243.1 kB

      See all downloads

    Videos

    [trigger to render Video Gallery]

    Images

    Specifications Show all

    General Information
    Cap base
    GX12-1  [ GX12-1]
    Operating position
    UNIVERSAL  [ Any or Universal (U)]
    Life to 5% failures (nom.)
    7000 h
    Life to 20% failures (nom.)
    9000 h
    Life to 50% failures (nom.)
    10000 h
    ANSI code HID
    -
    System description
    na  [ -]
    Light Technical
    Colour code
    825  [ CCT of 2500K]
    Luminous flux (rated) (min.)
    2100 lm
    Luminous flux (rated) (nom.)
    2400 lm
    Colour designation
    Golden White
    Lumen maintenance 10,000 hours (min.)
    65 %
    Lumen maintenance 10,000 hours (nom.)
    75 %
    Lumen maintenance 2,000 hours (min.)
    85 %
    Lumen maintenance 2,000 hours (nom.)
    95 %
    Lumen maintenance 5,000 hours (min.)
    75 %
    Lumen maintenance 5,000 hours (nom.)
    85 %
    Chromaticity coordinate X (nom.)
    468
    Chromaticity coordinate Y (nom.)
    408
    Correlated colour temperature (nom.)
    2500 K
    Luminous efficacy (rated) (nom.)
    44 lm/W
    Color rendering index (min.)
    80
    Color rendering index (nom.)
    81
    Operating and Electrical
    Power (Rated) (Nom)
    54.0 W
    Lamp current run-up (max.)
    1.6 A
    Ignition peak voltage (max.)
    4000 V
    Ignition supply voltage (min.)
    205 V
    Re-ignition time (min.) (max.)
    1.0 min
    Ignition time (max.)
    60 s
    Voltage (Max)
    90 V
    Voltage (Min)
    78 V
    Voltage (Nom)
    85 V
    Controls and Dimming
    Dimmable
    No
    Run-up time 90% (max.)
    2 min
    Mechanical and Housing
    Bulb finish
    Clear (CL)
    Bulb material
    -
    Approval and Application
    Energy efficiency label (EEL)
    B
    Mercury (Hg) content (nom.)
    5.7 mg
    Energy Consumption kWh/1000 h
    59 kWh
    Luminaire Design Requirements
    Bulb temperature (max.)
    500 °C
    Cap base temperature (max.)
    280 °C
    Pinch temperature (max.)
    350 °C
    Product Data
    Full product code
    871150020323615
    Order product name
    MASTER SDW-TG Mini 50W/825 GX12-1 1CT/12
    EAN/UPC – product
    8711500203236
    Order code
    20323615
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    12
    Material no. (12NC)
    928159905131
    Net weight (piece)
    0.034 kg
    ILCOS Code
    STH-50/25/1B-GX12-1
