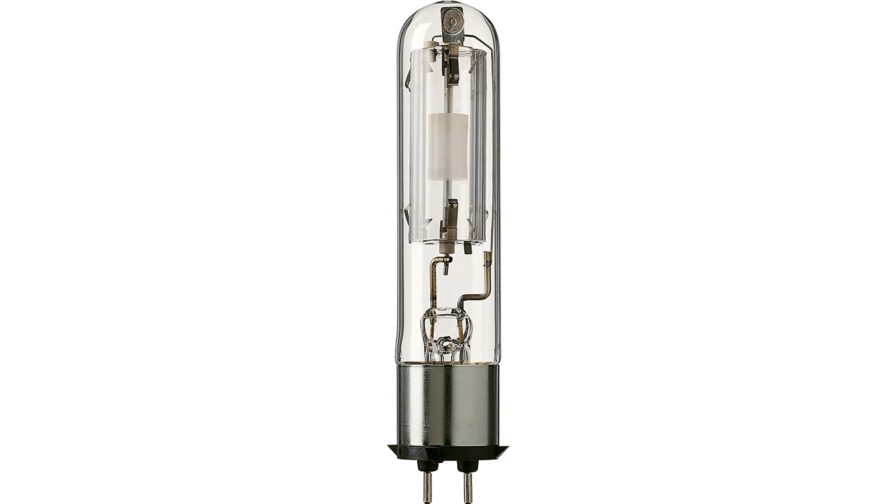

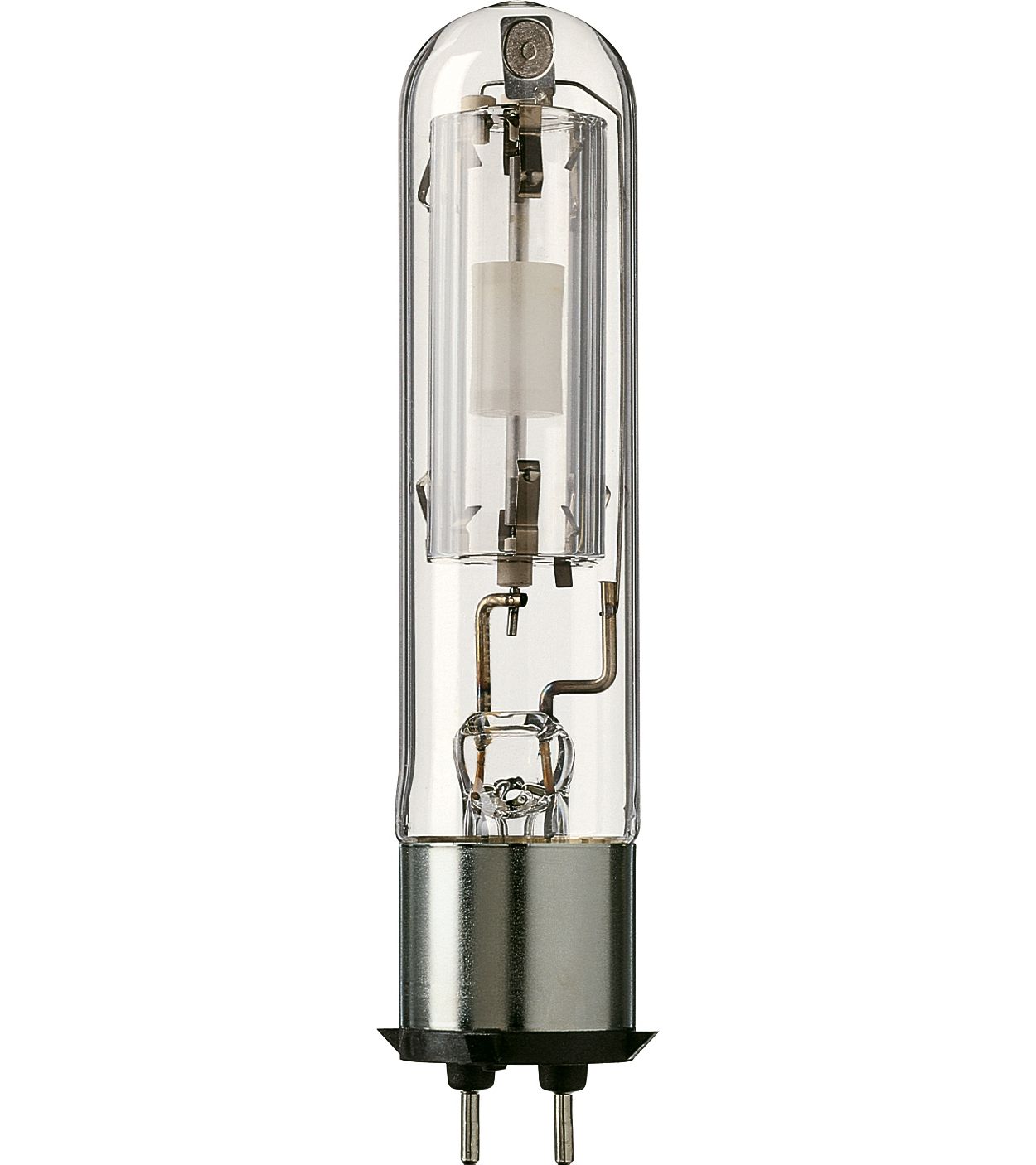

MASTERColour CDM-TP 150W/942 PGX12-2 1CT/12

Specifications Show all

General Information

Cap base	PGX12-2  [ PGX12-2]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Life to 5% failures (nom.)	9000 h
Life to 20% failures (nom.)	13000 h
Life to 50% failures (nom.)	16000 h

Light Technical

Colour code	942  [ CCT of 4200K]
Luminous flux (rated) (nom.)	12000 lm
Colour designation	Cool White (CW)
Lumen maintenance 10,000 hours (nom.)	70 %
Lumen maintenance 2,000 hours (nom.)	85 %
Lumen maintenance 5,000 hours (nom.)	75 %
Chromaticity coordinate X (nom.)	376
Chromaticity coordinate Y (nom.)	374
Correlated colour temperature (nom.)	4200 K
Luminous efficacy (rated) (nom.)	81 lm/W
Color rendering index (nom.)	95

Operating and Electrical

Power (Rated) (Nom)	148.0 W
Lamp current run-up (max.)	2.5 A
Lamp current (EM) (nom.)	1.8 A
Ignition peak voltage (max.)	5000 V
Ignition supply voltage (min.)	198 V
Re-ignition time (min.) (max.)	15 min
Ignition time (max.)	30 s
Voltage (Max)	104 V
Voltage (Min)	88 V
Voltage (Nom)	96 V

Controls and Dimming

Dimmable	No
Run-up time 90% (max.)	4 min

Mechanical and Housing

Bulb finish

Clear (CL)

Approval and Application

Energy efficiency label (EEL)	A+
Mercury (Hg) content (nom.)	12.2 mg
Energy Consumption kWh/1000 h	162 kWh

UV

PET (NIOSH) (min.)	8 h/500lx
Damage factor D/fc (max.)	0.3

Luminaire Design Requirements

Bulb temperature (max.)	480 °C
Cap base temperature (max.)	240 °C

Product Data

Full product code	871150020111915
Order product name	MASTERColour CDM-TP 150W/942 PGX12-2 1CT/12
EAN/UPC – product	8711500201119
Order code	20111915
Numerator – quantity per pack	1
Numerator – packs per outer box	12
Material no. (12NC)	928086209230
Net weight (piece)	77.000 g
ILCOS Code	MTS/UB-150/942-H-PGX12-2-32/149
