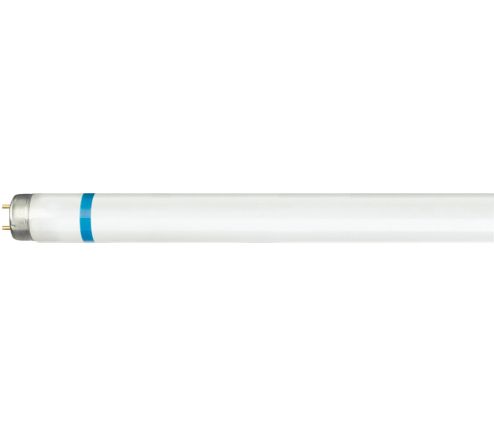

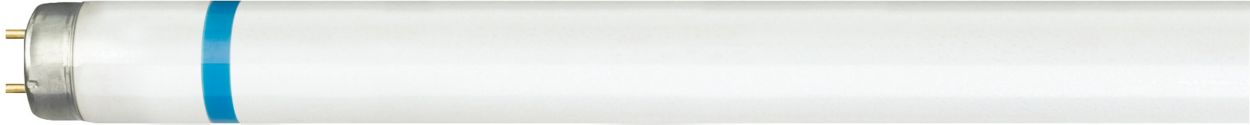

      MASTER TL-D Secura 18W/840 1SL/25
      MASTER TL-D Secura 18W/840 1SL/25
      MASTER TL-D Secura

      MASTER TL-D Secura 18W/840 1SL/25

      Order code: 64010940

      Full product code: 871150064010940

      Downloads

      Data sheet
      Size:217.3 kB

      See all downloads

    Videos

    [trigger to render Video Gallery]

    Images

    Specifications Show all

    General Information
    Cap base
    G13  [ Medium Bi-Pin Fluorescent]
    Life to 10% failures (nom.)
    12000 h
    Life to 50% failures (nom.)
    15000 h
    Life to 50% failures preheat (nom.)
    20000 h
    LSF 2000 h Rated
    99 %
    LSF 4000 h Rated
    99 %
    LSF 6000 h Rated
    99 %
    LSF 8000 h Rated
    99 %
    LSF 12000 h Rated
    89 %
    LSF 16000 h Rated
    33 %
    LSF 20000 h Rated
    2 %
    Light Technical
    Colour code
    841  [ CCT of 4100K (841)]
    Luminous flux (nom.)
    1300 lm
    Luminous flux (rated) (nom.)
    1300 lm
    Colour designation
    Cool White (CW)
    Chromaticity coordinate X (nom.)
    383
    Chromaticity coordinate Y (nom.)
    386
    Correlated colour temperature (nom.)
    4000 K
    Luminous efficacy (rated) (nom.)
    72 lm/W
    Color rendering index (nom.)
    85
    LLMF 2000 h Rated
    96 %
    LLMF 4000 h Rated
    95 %
    LLMF 6000 h Rated
    94 %
    LLMF 8000 h Rated
    93 %
    LLMF 12000 h Rated
    92 %
    LLMF 16000 h Rated
    91 %
    LLMF 20000 h Rated
    90 %
    Operating and Electrical
    Power (Rated) (Nom)
    18 W
    Lamp current (nom.)
    0.360 A
    Temperature
    Design temperature (nom.)
    25 °C
    Controls and Dimming
    Dimmable
    Yes
    Approval and Application
    Energy efficiency label (EEL)
    A
    Mercury (Hg) content (nom.)
    2.0 mg
    Energy Consumption kWh/1000 h
    22 kWh
    UV
    Damage factor D/fc (nom.)
    0.13
    Product Data
    Full product code
    871150064010940
    Order product name
    MASTER TL-D Secura 18W/840 SLV/25
    EAN/UPC – product
    8711500640109
    Order code
    64010940
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    25
    Material no. (12NC)
    927920484076
    Net weight (piece)
    84.000 g
    ILCOS Code
    FD-18/40/1B-E-G13

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    G13
    G13
    Performance Diagrams
    Photometrics
    Lightcolour Secura /840
    Lightcolour Secura /840
