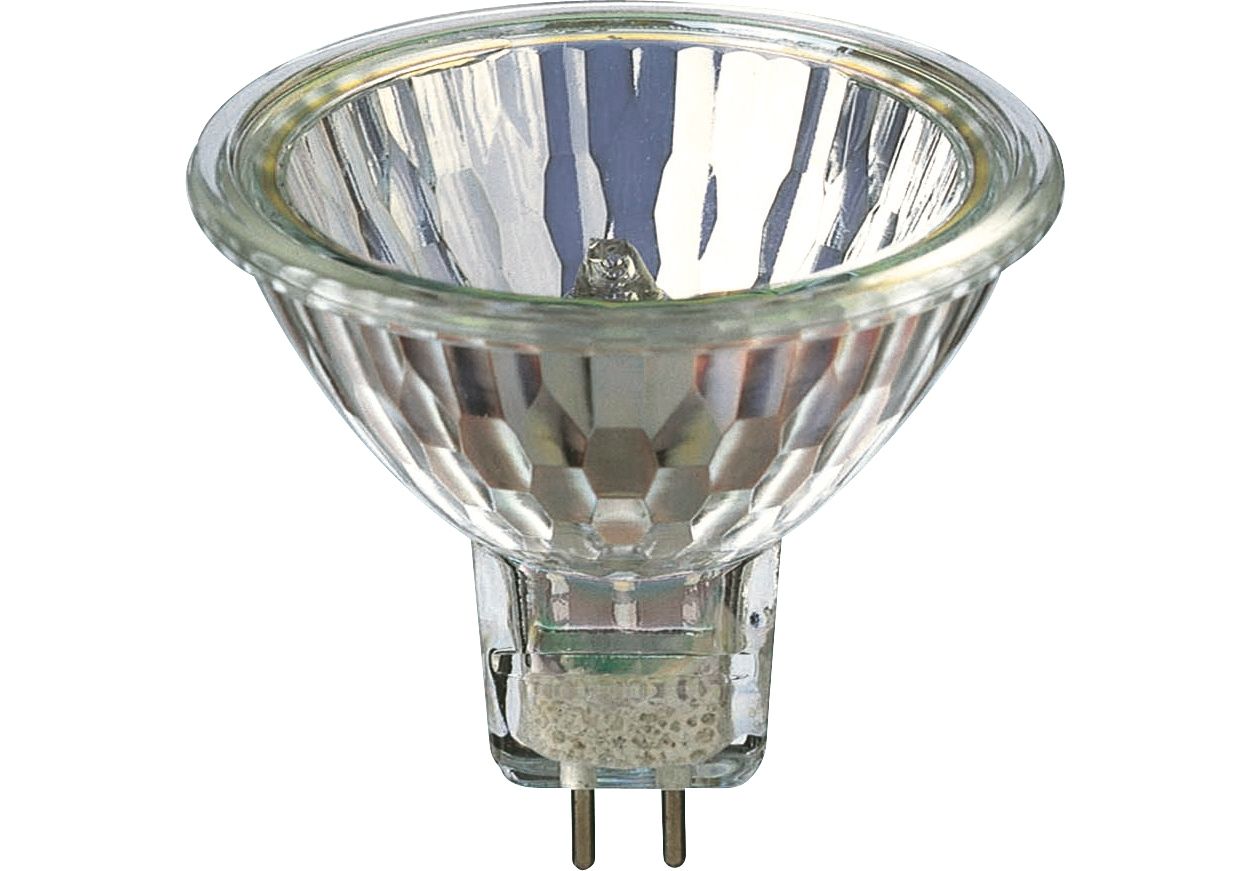

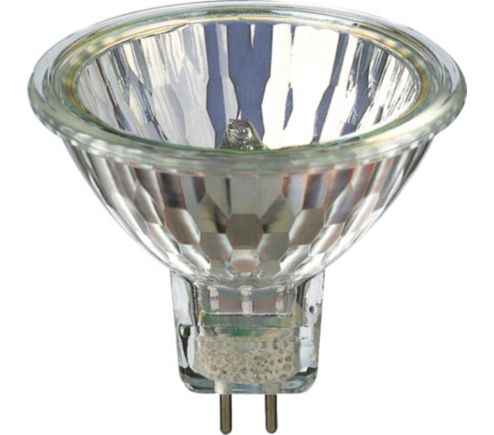

Ess MR16 20W GU5.3 12V 36D 1CT/10X5F

Specifications Show all

General Information

Cap base	GU5.3  [ GU5.3]
Philips code	14596
Operating position	UNIVERSAL  [ Any or Universal (U)]
ANSI code halogen	BAB
Nominal lifetime (nom.)	2000 h
Switching cycle	8000X

Light Technical

Beam Angle (Nom)	36 °
Luminous intensity (max.)	400 cd
Rated beam angle	36 °
Correlated colour temperature (nom.)	3000 K
Color rendering index (nom.)	100

Operating and Electrical

Power (Rated) (Nom)	20 W
Lamp current (nom.)	1.67 A
Starting time (nom.)	0.0 s
Voltage (Nom)	12 V

Controls and Dimming

Dimmable

Yes

Approval and Application

Energy efficiency label (EEL)

B

Luminaire Design Requirements

Cap base temperature (max.)

250 °C

Product Data

Full product code	871150088592065
Order product name	Ess MR16 20W GU5.3 12V 36D 1CT/10X5F
EAN/UPC – product	8711500885920
Order code	88592065
Numerator – quantity per pack	1
Numerator – packs per outer box	50
Material no. (12NC)	924049517186
Net weight (piece)	0.032 kg
ILCOS Code	HRGI-50-12-GU5.3-20/36
