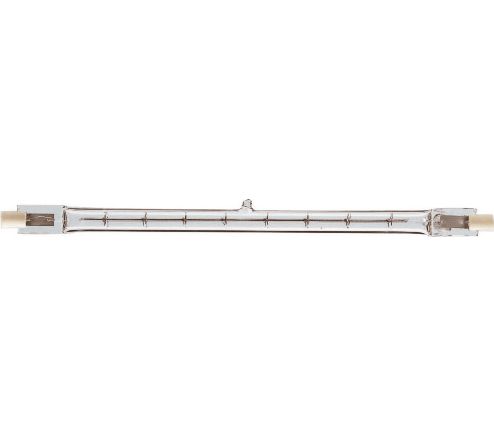

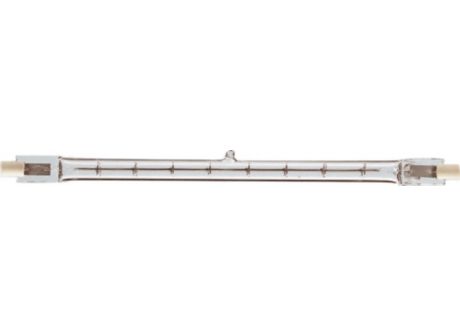

Plusline L 1000W R7s 240V 1CT/10

Specifications Show all

General Information

Cap base	R7S  [ R7s]
Operating position	P4  [ Parallel +/-4D or Horizontal(HOR)]
Nominal lifetime (nom.)	2000 h
Switching cycle	8000X

Light Technical

Luminous flux (nom.)	21500 lm
Luminous flux (rated) (nom.)	21500 lm
Correlated colour temperature (nom.)	2900 K
Luminous efficacy (rated) (nom.)	21.5 lm/W
Color rendering index (nom.)	100
LLMF at end of nominal lifetime (min.)	80 %

Operating and Electrical

Power (Rated) (Nom)	1000.0 W
Lamp current (nom.)	4.17 A
Starting time (nom.)	0.0 s
Warm-up time to 60% light (nom.)	instant full light
Power factor (nom.)	1
Voltage (Nom)	240 V

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Bulb finish

Clear (CL)

Approval and Application

Energy efficiency label (EEL)	B
Energy Consumption kWh/1000 h	1000 kWh

Luminaire Design Requirements

Bulb temperature (max.)	900 °C
Pinch temperature (max.)	350 °C

Product Data

Full product code	872790080855100
Order product name	Plusline L 1000W R7s 240V 1CT/10
EAN/UPC – product	8727900808551
Order code	80855100
Numerator – quantity per pack	1
Numerator – packs per outer box	10
Material no. (12NC)	923932145741
Net weight (piece)	0.016 kg
ILCOS Code	HDG//RS-1000-240-R7s-185,7
