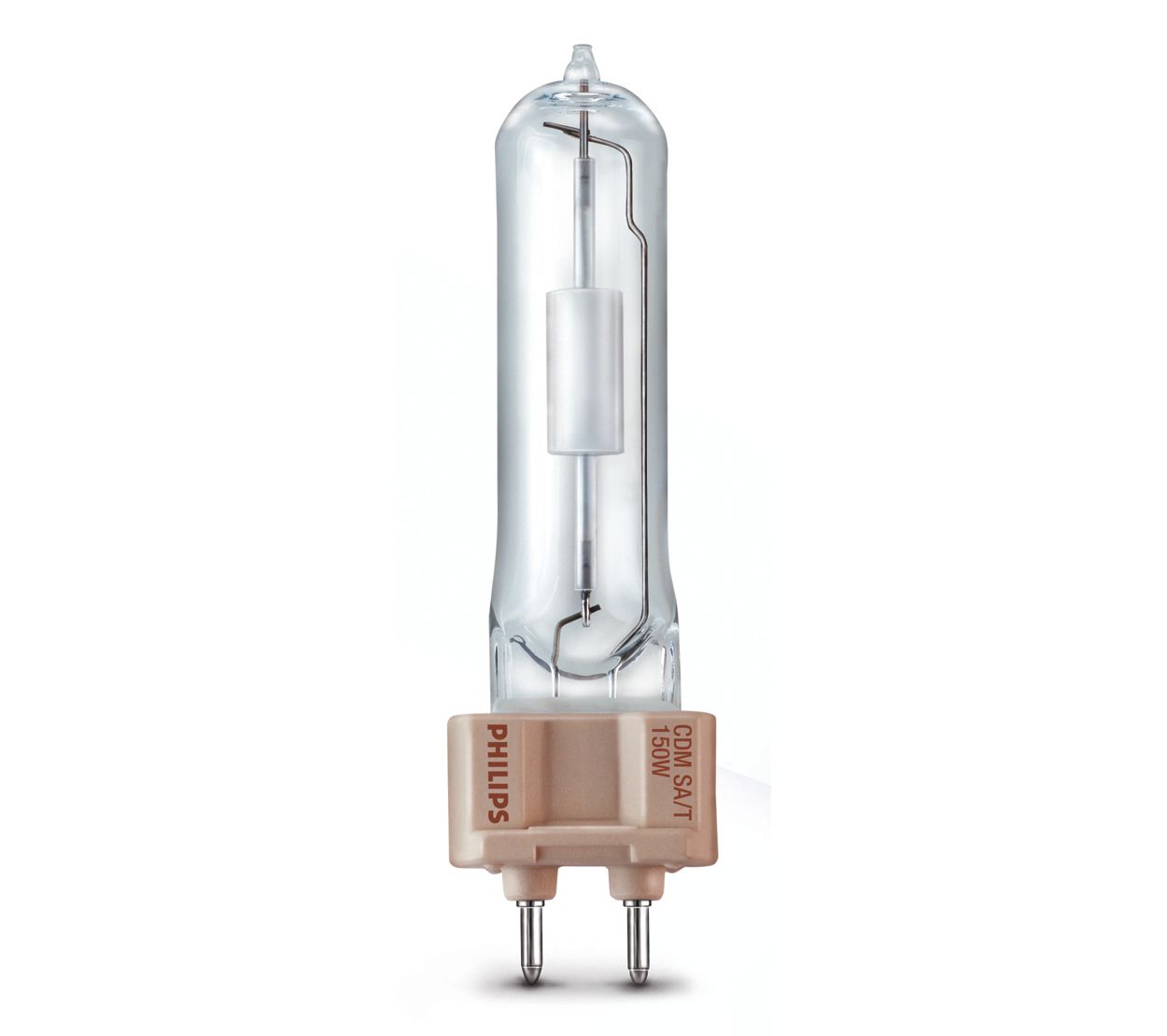

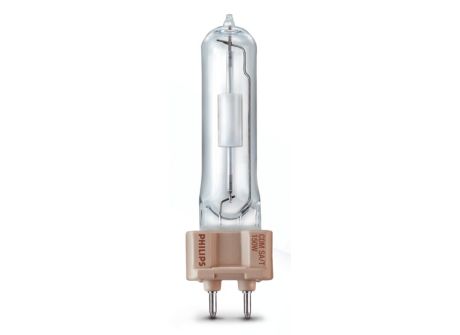

      CDM-SA/T 150W/942 1CT/12
      CDM-SA/T 150W/942 1CT/12
      CDM-SA/T

      CDM-SA/T 150W/942 1CT/12

      Order code: 20094515

      Full product code: 871150020094515

      Downloads

      Data sheet
      Size:246.4 kB

      See all downloads

    Videos

    [trigger to render Video Gallery]

    Images

    Specifications Show all

    General Information
    Cap base
    G12  [ G12]
    Operating position
    UNIVERSAL  [ Any or Universal (U)]
    Main application
    Dynamic Architectural
    Life to 50% failures (nom.)
    9000 h
    Light Technical
    Colour code
    942  [ CCT of 4200K]
    Luminous flux (min.)
    12000 lm
    Luminous flux (nom.)
    13330 lm
    Colour designation
    Cool White (CW)
    Chromaticity coordinate X (nom.)
    380
    Chromaticity coordinate Y (nom.)
    360
    Correlated colour temperature (nom.)
    4200 K
    Luminous efficacy (rated) (nom.)
    86 lm/W
    Color rendering index (nom.)
    95
    Operating and Electrical
    Power (Rated) (Nom)
    150 W
    Lamp current (nom.)
    1.8 A
    Ignition supply voltage (min.)
    198 V
    Controls and Dimming
    Dimmable
    No
    Approval and Application
    Mercury (Hg) content (max.)
    11.9 mg
    Luminaire Design Requirements
    Bulb temperature (max.)
    650 °C
    Pinch temperature (max.)
    350 °C
    Product Data
    Full product code
    871150020094515
    Order product name
    CDM-SA/T 150W/942 1CT/12
    EAN/UPC – product
    8711500200945
    Order code
    20094515
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    12
    Material no. (12NC)
    928086605103
    Net weight (piece)
    0.030 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    G12
    G12
    Performance Diagrams
    Photometrics
