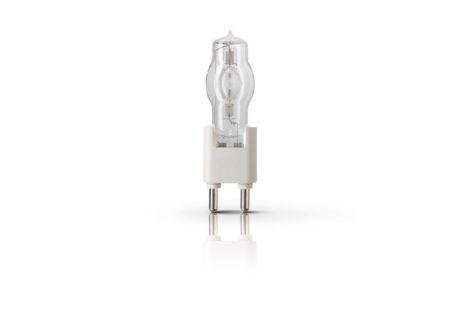

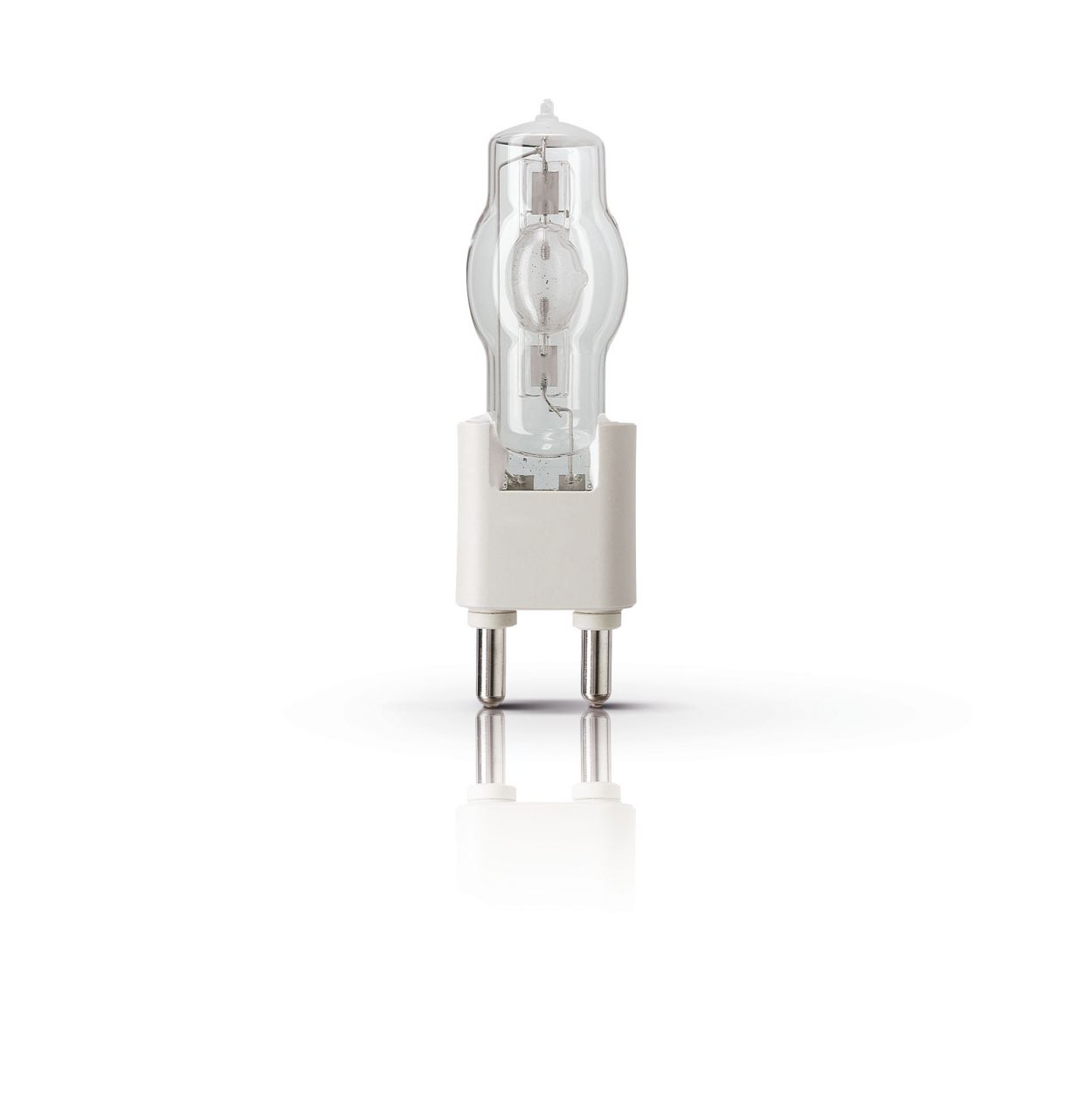

MSR 2500 HR 1CT/2

Specifications Show all

General Information

Cap base	G38  [ G38]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Main application	Indoor & Outdoor filming
Life to 50% failures (nom.)	500 h
System description	Hot Restrike

Light Technical

Colour code	-  [ Not Specified]
Luminous flux (min.)	210000 lm
Luminous flux (nom.)	240000 lm
Chromaticity coordinate X (nom.)	325
Chromaticity coordinate Y (nom.)	328
Correlated colour temperature (nom.)	6000 K
Luminous efficacy (rated) (nom.)	96 lm/W
Color rendering index (nom.)	95

Operating and Electrical

Power (Rated) (Nom)	2500 W
Lamp current (nom.)	25.6 A
Ignition supply voltage (min.)	207 V

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Cap base information

na  [ -]

Luminaire Design Requirements

Bulb temperature (max.)	700 °C
Pinch temperature (max.)	450 °C

Product Data

Full product code	872790092604000
Order product name	MSR 2500 HR 1CT/2
EAN/UPC – product	8727900926040
Order code	92604000
Numerator – quantity per pack	1
Numerator – packs per outer box	2
Material no. (12NC)	928104905114
Net weight (piece)	0.305 kg
