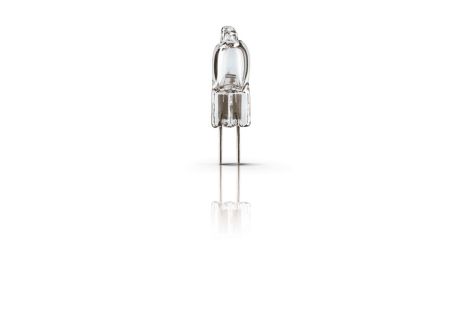

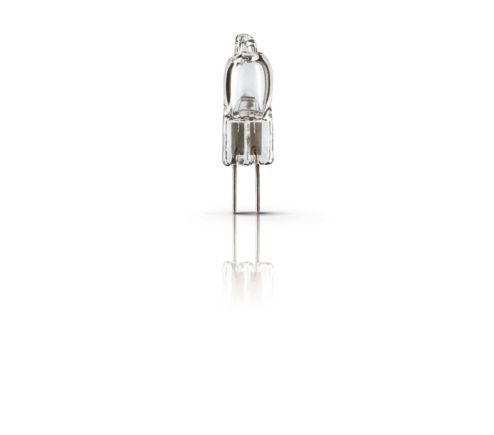

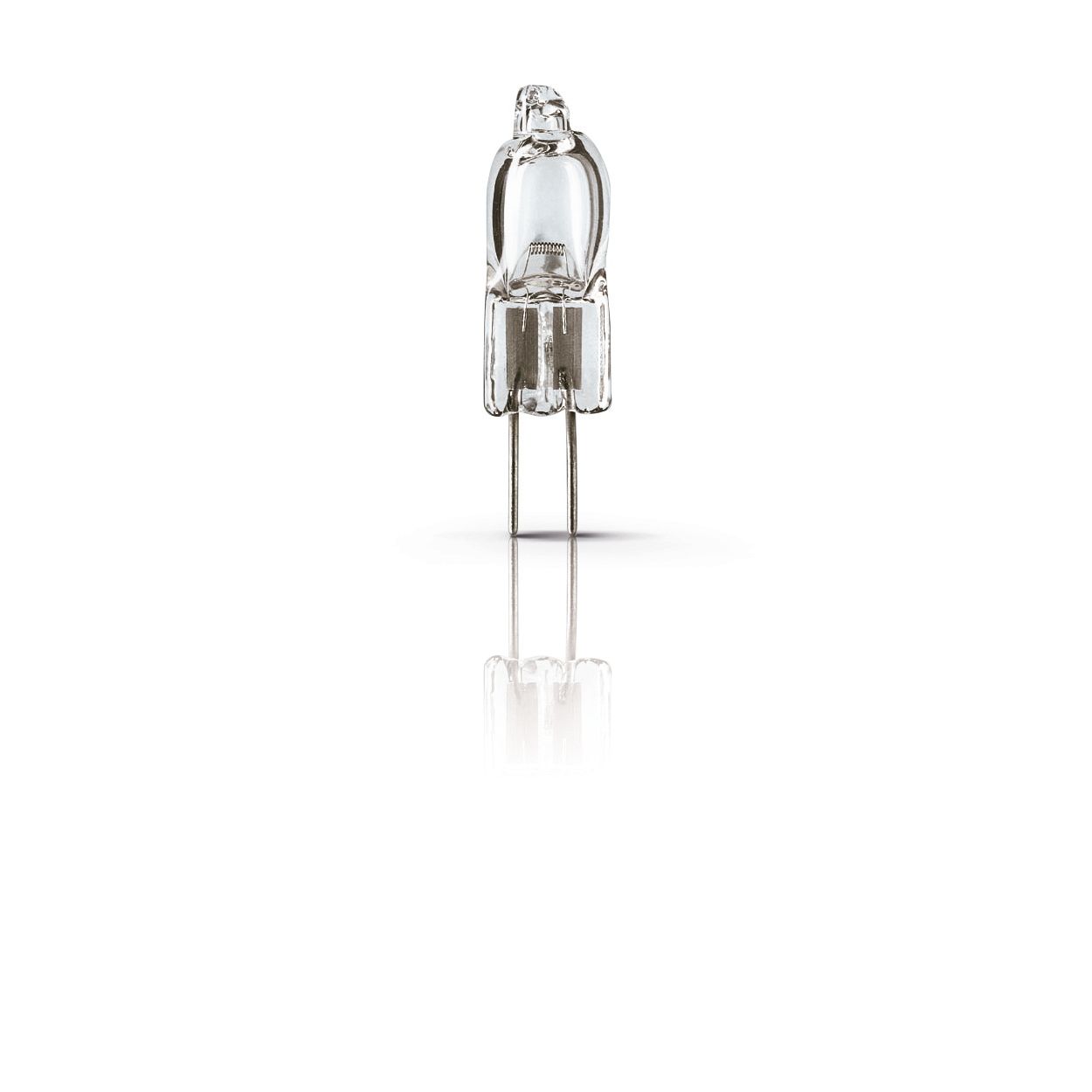

7387 10W G4 6V 1CT/10X10F

Specifications Show all

General Information

Cap base	G4  [ G4]
Philips code	7387
ANSI Code	ESA
LIF code	M29
Operating position	S90  [ Standing +/-90D or Base Down (BDH)]
Main application	Projection
Life to 50% failures (nom.)	100 h

Light Technical

Luminous flux (nom.)	200 lm
Correlated colour temperature (nom.)	3200 K
Color rendering index (nom.)	100

Operating and Electrical

Power (Rated) (Nom)	10 W
Voltage (Nom)	6 V

Mechanical and Housing

Bulb material	Quartz-UV Open
Filament dimensions WxH	1.7x0.65

Luminaire Design Requirements

Bulb temperature (max.)	900 °C
Pinch temperature (max.)	400 °C

Product Data

Full product code	871150041027650
Order product name	7387 10W G4 6V 1CT/10X10F
EAN/UPC – product	8711500410276
Order code	41027650
Numerator – quantity per pack	1
Numerator – packs per outer box	100
Material no. (12NC)	923874510103
Net weight (piece)	0.001 kg
