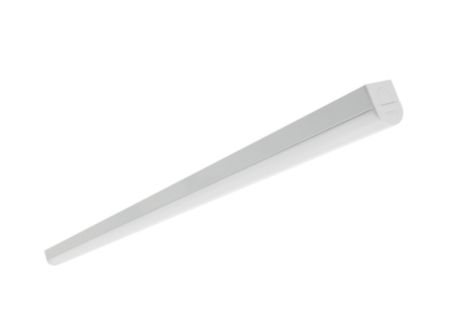

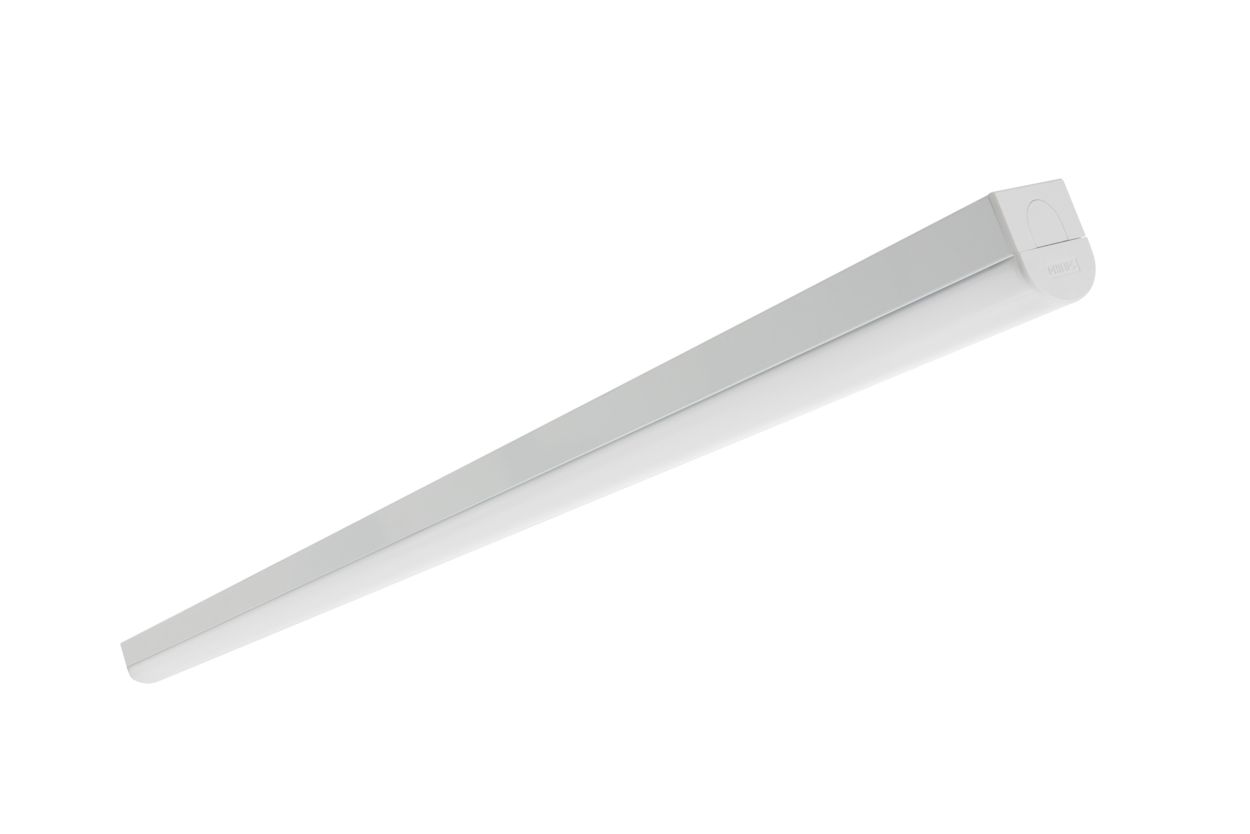

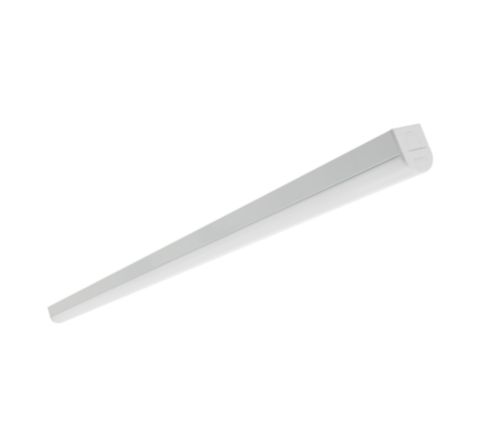

BN126C LED60S/840 PSU L1500

Specifications Show all

Operating and Electrical

Number of products on MCB of 16 A type B	30
Input Frequency	50 or 60 Hz
Line Frequency	50 or 60 Hz
Input Voltage	220 to 240 V
Power Factor (Fraction)	0.9

Product Data

Full product name	BN126C LED60S/840 PSU L1500
Full product code	692382863855999
Material number (12NC)	911401899180
Numerator - Packs per outer box	6
Numerator - Quantity Per Pack	1
Order code	911401899180
Order product name	BN126C LED60S/840 PSU L1500
EAN/UPC - Case	6923828638610

Approval and Application

Mech. impact protection code	IK04  [0.5 J standard plus]
Ingress protection code	IP20/40  [Finger-protected, Emitting surface]
CE mark	CE mark
Protection class IEC	Safety class I

Controls and Dimming

Control interface	-
Dimmable	No

General Information

Light source engine type

LED

Mechanical and Housing

Overall width	65 mm
Overall height	1,450 mm
Overall length	65 mm
Housing Material	Steel
Optical cover/lens finish	Opal
Optical cover/lens material	Polycarbonate
Housing Color	White RAL 9003
Dimensions (Height x Width x Depth)	1450 x 65 x 65 mm

Initial Performance (IEC Compliant)

Luminous flux tolerance	+/-10%
Power consumption tolerance	+/-10%

Temperature

Ambient temperature range

-20 to +40 °C

Light Technical

Luminous Efficacy (rated) (Nom)	107 lm/W
Correlated Color Temperature (Nom)	4000 K
Light source color	840 neutral white
Color rendering index (CRI)	>80
Luminous Flux	6,000 lumen
Optical cover/lens type	Polycarbonate Diffuser
