    • Mains-voltage LED specialty product with huge energy saving and high light output

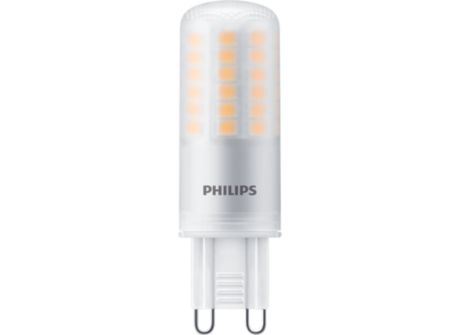

      CorePro LEDcapsule ND 4.8-60W G9 827
      LED
      CorePro LEDcapsule ND 4.8-60W G9 827
      CorePro LEDcapsule MV

      CorePro LEDcapsule ND 4.8-60W G9 827

      Order code: 929002055102

      Full product code: 871869965780200

      Downloads

      Data sheet
      Size:702.0 kB

      See all downloads

    Specifications Show all

    General information
    Cap-Base
    G9  [ G9]
    CE mark
    Yes
    EU RoHS compliant
    Yes
    Nominal Lifetime (Nom)
    15000 h
    Switching Cycle
    50000
    Flux measurement reference
    Sphere
    Tier
    CorePro
    Light technical
    Color Code
    827  [ CCT of 2700K]
    Luminous Flux (Nom)
    570 lm
    Color Designation
    Warm White (WW)
    Correlated Color Temperature (Nom)
    2700 K
    Luminous Efficacy (rated) (Nom)
    118.00 lm/W
    Color Consistency
    <6
    Color Rendering Index (Nom)
    80
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Operating and electrical
    Input Frequency
    50 to 60 Hz
    Power (Nom)
    4.8 W
    Lamp Current (Nom)
    44 mA
    Wattage Equivalent
    60 W
    Starting Time (Nom)
    0.5 s
    Warm Up Time to 60% Light (Nom)
    0.5 s
    Power Factor (Nom)
    0.4
    Voltage (Nom)
    220-240 V
    Temperature
    T-Case Maximum (Nom)
    99 °C
    Controls and dimming
    Dimmable
    No
    Mechanical and housing
    Bulb Shape
    Capsule
    Approval and application
    Energy Efficiency Class
    E
    Suitable For Accent Lighting
    No
    Energy Consumption kWh/1000 h
    5 kWh
    EPREL Registration Number
    397599
    Product data
    Full product code
    871869965780200
    Order product name
    CorePro LEDcapsule ND 4.8-60W G9 827
    EAN/UPC - Product
    8718699657802
    Order code
    929002055102
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    12
    Material Nr. (12NC)
    929002055102
    Net Weight (Piece)
    0.012 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     G9 Capsule
    G9 Capsule
    G9
    G9
    Performance Diagrams
    LEDcapsule ND 4.8-60W G9
    LEDcapsule ND 4.8-60W G9
    LEDcapsule ND 4.8-60W G9
    LEDcapsule ND 4.8-60W G9
    Photometrics
    LEDcapsule ND 4.8-60W G9
    LEDcapsule ND 4.8-60W G9
    LEDcapsule ND 4.8-60W G9
    LEDcapsule ND 4.8-60W G9
    LEDcapsule ND 4.8-60W G9
    LEDcapsule ND 4.8-60W G9
    Downloads
    Data sheets
    Green Data
    Visuals
    Software Plugins
    • IES LEDcapsule ND 4.8-60W G9 IES 4.8 kB
