    • Essential LED - Affordable LED solution

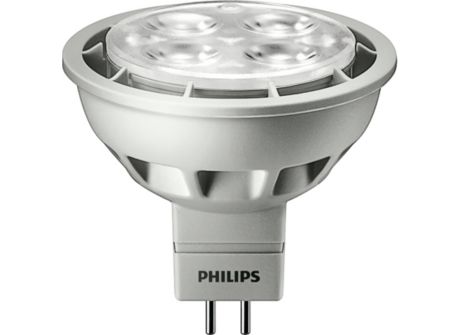

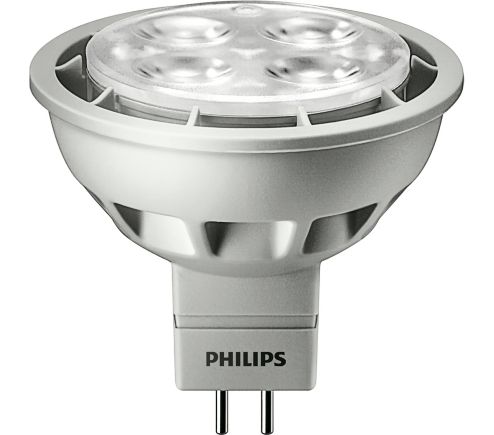

      Essential LED 2.6-20W 6500K MR16 24D
      LED
      Essential LED 2.6-20W 6500K MR16 24D
      Essential LED

      Essential LED 2.6-20W 6500K MR16 24D

      Order code: 66356000

      Full Product Code: 871829166356000

      Downloads

      Data sheet
      Size:655.0 kB

      See all downloads

    Videos

    [trigger to render Video Gallery]

    Images

    Specifications Show all

    General Information
    Cap base
    GU5.3  [ GU5.3]
    Nominal lifetime (nom.)
    15000 h
    Switching cycle
    50000X
    Technical type
    2.6-20W
    Light Technical
    Colour code
    865  [ CCT of 6500K]
    Beam Angle (Nom)
    24 °
    Light distribution
    24D  [ Medium beam]
    Luminous flux (nom.)
    170 lm
    Luminous flux (rated) (nom.)
    170 lm
    Luminous intensity (nom.)
    750 cd
    Rated beam angle
    24 °
    Correlated colour temperature (nom.)
    6500 K
    Luminous efficacy (rated) (nom.)
    65.38 lm/W
    Colour consistency
    <6
    Color rendering index (nom.)
    80
    LLMF at end of nominal lifetime (nom.)
    70 %
    Operating and Electrical
    Input frequency
    50 to 60 Hz
    Power (Rated) (Nom)
    2.6 W
    Lamp current (nom.)
    363 mA
    Wattage equivalent
    20 W
    Starting time (nom.)
    0.5 s
    Warm-up time to 60% light (nom.)
    instant full light
    Power factor (nom.)
    0.5
    Voltage (Nom)
    12 V
    Controls and Dimming
    Dimmable
    No
    Approval and Application
    Suitable for accent lighting
    Yes
    Energy efficiency label (EEL)
    A
    Energy Consumption kWh/1000 h
    4 kWh
    Product Data
    Full product code
    871829166356000
    Order product name
    Essential LED 2.6-20W 6500K MR16 24D
    EAN/UPC – product
    8718291663560
    Order code
    66356000
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    20
    Material no. (12NC)
    929000232808
    Net weight (piece)
    0.035 kg
