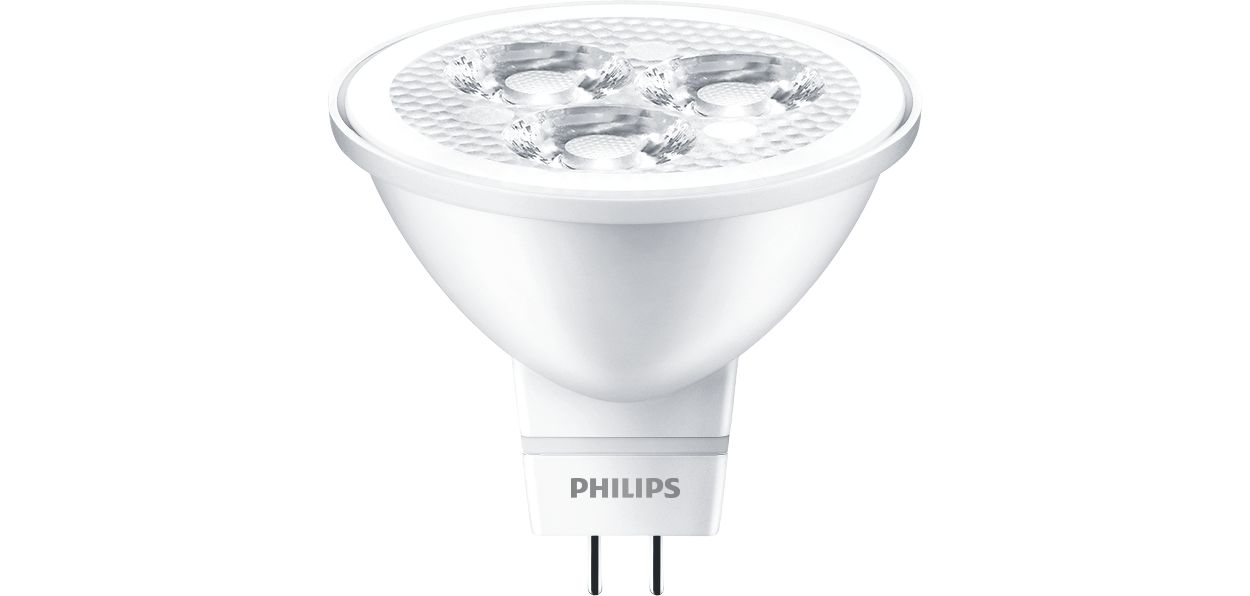

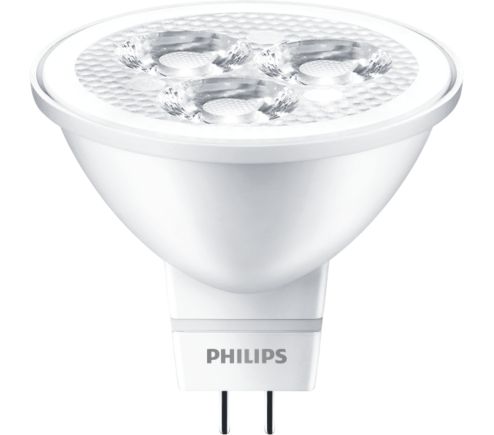

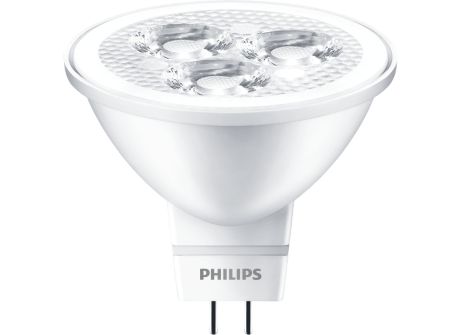

      CorePro LED 3-35W 6500K MR16 24D CN
      LED
      CorePro LED 3-35W 6500K MR16 24D CN
      CorePro LEDspot LV

      CorePro LED 3-35W 6500K MR16 24D CN

      Downloads

      Data sheet
      Size:518.2 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Voltage (Nom)
    12 V
    Line Frequency
    - Hz
    Starting Time (Nom)
    0.5 s
    Wattage Equivalent
    35 W
    Lamp Current (Nom)
    350 mA
    Warm-up time to 60% light
    1 s
    Power Factor (Fraction)
    0.5
    Input Frequency
    - Hz
    Approval and Application
    Suitable For Accent Lighting
    Yes
    EU RoHS compliant
    Yes
    Product Data
    Full product name
    CorePro LED 3-35W 6500K MR16 24D CN
    Material number (12NC)
    929001239810
    Full product code
    694793912364300
    Order code
    929001239810
    Numerator - Quantity Per Pack
    1
    EAN/UPC - Case
    6947939123650
    Order product name
    CorePro LED 3-35W 6500K MR16 24D CN
    Numerator - Packs per outer box
    10
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Bulb Shape
    MR16  [2inch/50mm]
    General Information
    Nominal lifetime
    15,000 hour(s)
    Switching Cycle
    50,000
    Cap-Base
    GU5.3  [GU5.3]
    Rated Lifetime (Hours)
    15,000 hour(s)
    Lighting Technology
    LED
    Temperature
    T-Case Maximum (Nom)
    76 °C
    Light Technical
    Luminous Efficacy (rated) (Nom)
    96.67 lm/W
    Correlated Color Temperature (Nom)
    6500 K
    Luminous Intensity (Nom)
    1,000 cd
    Color Code
    865  [CCT of 6500K]
    Color Code
    865  [CCT of 6500K]
    Color rendering index (CRI)
    80
    Color Consistency
    <6
    Color Designation
    Cool Daylight
    Luminous Flux
    290 lumen
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Beam Angle (Nom)
    24 degree(s)

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     GU5.3 2inch/50mm
    GU5.3 2inch/50mm
    GU5.3
    GU5.3
    Performance Diagrams
    Lumen Maintenance Diagram - CorePro LED 3-35W 6500K MR16 24D CN
    Lumen Maintenance Diagram - CorePro LED 3-35W 6500K MR16 24D CN
    Life Expectancy Diagram - CorePro LED 3-35W 6500K MR16 24D CN
    Life Expectancy Diagram - CorePro LED 3-35W 6500K MR16 24D CN
    Photometrics
    Accent Diagram - CorePro LED 3-35W 6500K MR16 24D CN
    Accent Diagram - CorePro LED 3-35W 6500K MR16 24D CN
    Spectral Power Distribution Colour - CorePro LED 3-35W 6500K MR16 24D CN
    Spectral Power Distribution Colour - CorePro LED 3-35W 6500K MR16 24D CN
    Light Distribution Diagram - CorePro LED 3-35W 6500K MR16 24D CN
    Light Distribution Diagram - CorePro LED 3-35W 6500K MR16 24D CN
