    • An optimum combination of value and performance, MASTER Value LEDspot MV is a perfect fit for spot lighting

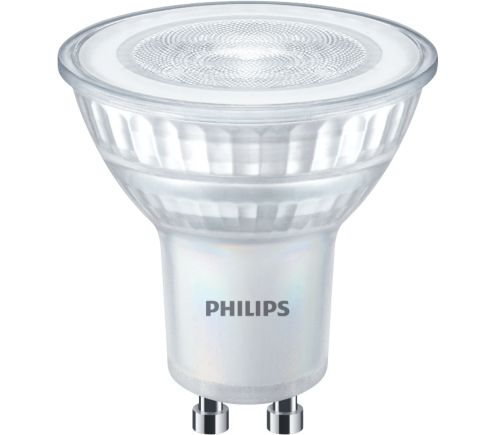

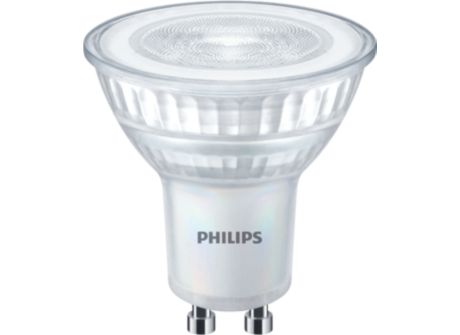

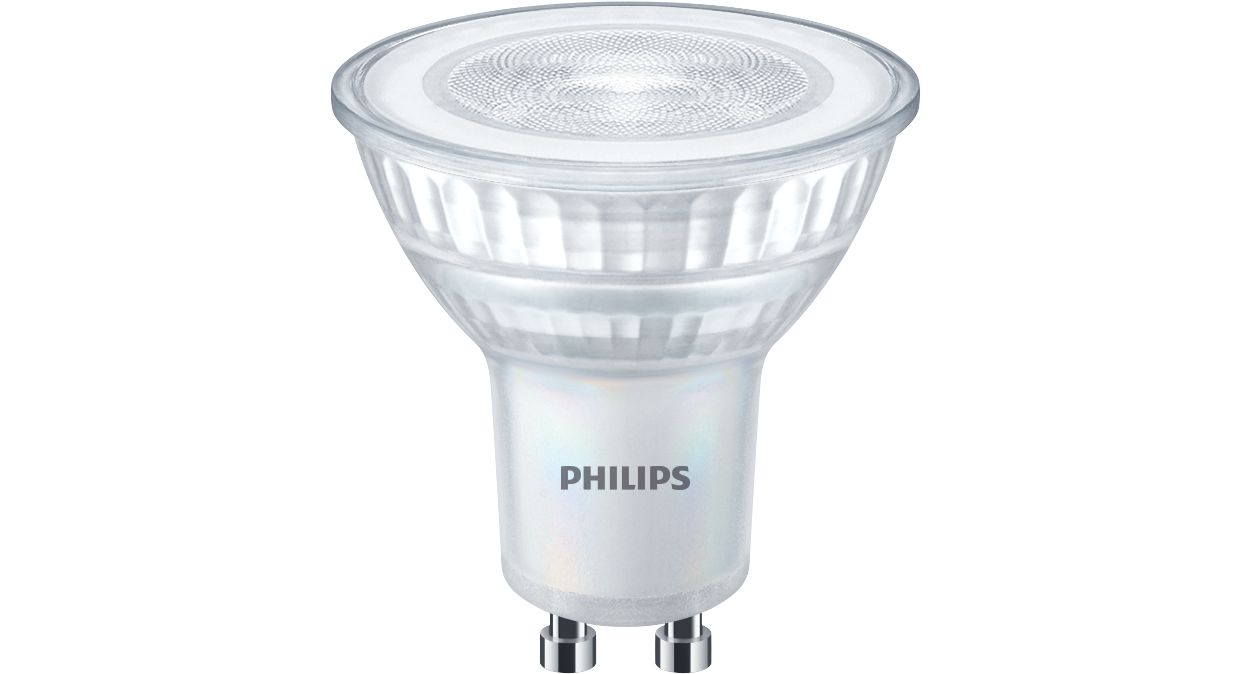

      MASTER LEDspot VLE D 5-50W GU10 830 36D 1PF
      LED
      MASTER LEDspot VLE D 5-50W GU10 830 36D 1PF
      MASTER VALUE LEDspot MV

      MASTER LEDspot VLE D 5-50W GU10 830 36D 1PF

      Order code: 929002348402

      Full product code: 871869975311500

      Downloads

      Data sheet
      Size:615.8 kB

      See all downloads

    Specifications Show all

    General information
    Cap-Base
    GU10  [ GU10]
    EU RoHS compliant
    Yes
    Nominal Lifetime (Nom)
    25000 h
    Switching Cycle
    50000
    Light technical
    Color Code
    830  [ CCT of 3000K]
    Beam Angle (Nom)
    36 °
    Luminous Flux (Nom)
    400 lm
    Luminous Intensity (Nom)
    650 cd
    Color Designation
    White (WH)
    Correlated Color Temperature (Nom)
    3000 K
    Luminous Efficacy (rated) (Nom)
    80.00 lm/W
    Color Consistency
    <6
    Color Rendering Index (Nom)
    80
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Operating and electrical
    Input Frequency
    50 to 60 Hz
    Power (Nom)
    5 W
    Lamp Current (Nom)
    25 mA
    Wattage Equivalent
    50 W
    Starting Time (Nom)
    0.5 s
    Warm Up Time to 60% Light (Nom)
    0.5 s
    Power Factor (Nom)
    0.7
    Voltage (Nom)
    220-240 V
    Temperature
    T-Case Maximum (Nom)
    85 °C
    Controls and dimming
    Dimmable
    Only with specific dimmers
    Mechanical and housing
    Bulb Shape
    PAR16  [ PAR 2 inch/50mm]
    Approval and application
    Suitable For Accent Lighting
    Yes
    Product data
    Full product code
    871869975311500
    Order product name
    MASTER LEDspot VLE D 5-50W GU10 830 36D 1PF
    EAN/UPC - Product
    8718699753115
    Order code
    929002348402
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    10
    Material Nr. (12NC)
    929002348402
    Net Weight (Piece)
    0.048 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     GU10 PAR 2 inch
    GU10 PAR 2 inch
    GU10
    GU10
    Performance Diagrams
    Lumen Maintenance Diagram
    Lumen Maintenance Diagram
    Life Expectancy Diagram
    Life Expectancy Diagram
    Photometrics
    LEDspots GM 5W PAR16 GU10 830 36D-LA2
    LEDspots GM 5W PAR16 GU10 830 36D-LA2
    LEDspots GM 5W PAR16 GU10 830 36D-POC
    LEDspots GM 5W PAR16 GU10 830 36D-POC
    LEDspots GM 5W PAR16 GU10 830 36D-LDD
    LEDspots GM 5W PAR16 GU10 830 36D-LDD
    Downloads
    Data sheets
    Green Data
    Visuals
    Software Plugins
    • IES LEDspots GM 5W PAR16 GU10 830 36D-IES IES 4.7 kB
