    • The new generational of Mains T5 LEDtube lighting

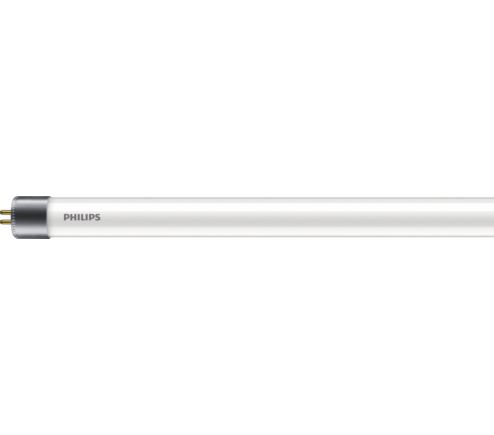

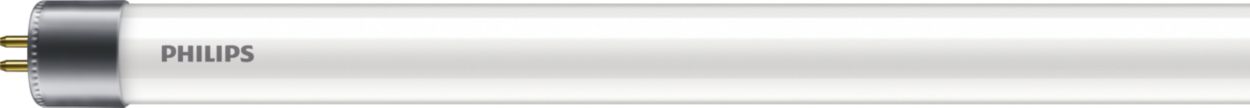

      MAS LEDtube 1200mm HO 26W 865 G5 VWV BR
      LED
      MAS LEDtube 1200mm HO 26W 865 G5 VWV BR
      LEDtube Mains T5

      MAS LEDtube 1200mm HO 26W 865 G5 VWV BR

      Order code: 929002388312

      Full product code: 871869976537800

      Downloads

      Data sheet
      Size:714.5 kB

      See all downloads

    Specifications Show all

    General information
    Cap-Base
    G5  [ G5]
    EU RoHS compliant
    Yes
    Nominal Lifetime (Nom)
    25000 h
    Switching Cycle
    200000
    Light technical
    Color Code
    865  [ CCT of 6500K]
    Beam Angle (Nom)
    200 °
    Luminous Flux (Nom)
    3900 lm
    Color Designation
    Cool Daylight
    Correlated Color Temperature (Nom)
    6500 K
    Luminous Efficacy (rated) (Nom)
    150.00 lm/W
    Color Consistency
    <6
    Color Rendering Index (Nom)
    80
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Operating and electrical
    Input Frequency
    50 to 60 Hz
    Power (Nom)
    26 W
    Lamp Current (Max)
    230 mA
    Lamp Current (Min)
    140 mA
    Starting Time (Nom)
    0.5 s
    Warm Up Time to 60% Light (Nom)
    0.5 s
    Power Factor (Nom)
    0.92
    Voltage (Nom)
    100-277 V
    Temperature
    T-Ambient (Max)
    45 °C
    T-Ambient (Min)
    -20 °C
    T-Storage (Max)
    65 °C
    T-Storage (Min)
    -40 °C
    T-Case Maximum (Nom)
    50 °C
    Controls and dimming
    Dimmable
    No
    Mechanical and housing
    Product Length
    1200 mm
    Bulb Shape
    Tube, double-ended
    Approval and application
    Energy Saving Product
    Yes
    Approval Marks
    RoHS compliance
    Energy Consumption kWh/1000 h
    - kWh
    Product data
    Full product code
    871869976537800
    Order product name
    MAS LEDtube 1200mm HO 26W 865 G5 VWV BR
    EAN/UPC - Product
    8718699765378
    Order code
    929002388312
    Numerator - Quantity Per Pack
    1
    Local code description
    LÂMPADA LED TUBULAR T5HO-26W-6500K
    Numerator - Packs per outer box
    20
    Material Nr. (12NC)
    929002388312
    Net Weight (Piece)
    0.240 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     G5 Tube, double-ended
    G5 Tube, double-ended
    G5
    G5
    Performance Diagrams
    LEDtube MAS 1 26W 25k LumenVsTc
    LEDtube MAS 1 26W 25k LumenVsTc
    LEDtube 25K
    LEDtube 25K
    LEDtube 25K FailureRate
    LEDtube 25K FailureRate
    LEDtube 25K
    LEDtube 25K
    LEDtube 25K LifetimeVsTc
    LEDtube 25K LifetimeVsTc
    Photometrics
    LEDtube MAS 1 26W G5 3900lm 865
    LEDtube MAS 1 26W G5 3900lm 865
    LEDtube MAS 1 26W G5 3900lm 865
    LEDtube MAS 1 26W G5 3900lm 865
    LEDtube MAS 1 26W G5 3900lm
    LEDtube MAS 1 26W G5 3900lm
