    • The new generation of energy-saving tube lighting

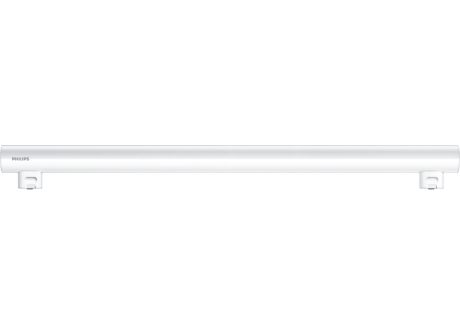

      LED 3.5W 500mm S14S WW ND 1CT/4
      LED
      LED 3.5W 500mm S14S WW ND 1CT/4
      Other LEDtube

      LED 3.5W 500mm S14S WW ND 1CT/4

      Downloads

      Data sheet
      Size:828.7 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Voltage (Nom)
    220-240 V
    Starting Time (Nom)
    0.5 s
    Line Frequency
    50 to 60 Hz
    Lamp Current (Nom)
    32 mA
    Warm-up time to 60% light
    0.5 s
    Input Frequency
    50 to 60 Hz
    Power Factor (Fraction)
    0.4
    Approval and Application
    Energy Consumption kWh/1000 h
    4 kWh
    EPREL Registration Number
    387350
    EU RoHS compliant
    Yes
    Energy Saving Product
    Yes
    Energy Efficiency Class
    F
    Approval Marks
    RoHS compliance
    CE marking
    KEMA Keur certificate
    Product Data
    Full product name
    LED 3.5W 500mm S14S WW ND 1CT/4
    Material number (12NC)
    929002444301
    Order code
    929002444301
    EAN/UPC - Case
    8719514263598
    Full product code
    871951426358100
    Numerator - Packs per outer box
    4
    Numerator - Quantity Per Pack
    1
    Order product name
    LED 3.5W 500mm S14S WW ND 1CT/4
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Bulb Material
    Plastic
    Product Length
    500 mm
    Bulb Shape
    Others
    Bulb Finish
    Frosted
    General Information
    Nominal lifetime
    30,000 hour(s)
    Switching Cycle
    50,000
    Cap-Base
    S14S  [S14s]
    Rated Lifetime (Hours)
    30,000 hour(s)
    Flux measurement reference
    Sphere
    Lighting Technology
    LED
    Temperature
    Ambient temperature range
    -20 °C to 45 °C
    T-Case Maximum (Nom)
    30 °C
    Light Technical
    Luminous Efficacy (rated) (Nom)
    107.00 lm/W
    Correlated Color Temperature (Nom)
    2700 K
    Color Code
    827  [CCT of 2700K]
    Color Code
    827  [CCT of 2700K]
    Color rendering index (CRI)
    80
    Color Designation
    Warm White (WW)
    Luminous Flux
    375 lumen
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Beam Angle (Nom)
    140 degree(s)
    Color Consistency
    <6

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     S14s Others Frosted
    S14s Others Frosted
    S14s
    S14s
    Performance Diagrams
    Lumen Maintenance Diagram - LED 3.5W 500mm S14S WW ND 1CT/4
    Lumen Maintenance Diagram - LED 3.5W 500mm S14S WW ND 1CT/4
    Lumen Maintenance Diagram - LED 3.5W 500mm S14S WW ND 1CT/4
    Lumen Maintenance Diagram - LED 3.5W 500mm S14S WW ND 1CT/4
    Life Expectancy Diagram - LED 3.5W 500mm S14S WW ND 1CT/4
    Life Expectancy Diagram - LED 3.5W 500mm S14S WW ND 1CT/4
    Life Expectancy Diagram - LED 3.5W 500mm S14S WW ND 1CT/4
    Life Expectancy Diagram - LED 3.5W 500mm S14S WW ND 1CT/4
    Life Expectancy Diagram - LED 3.5W 500mm S14S WW ND 1CT/4
    Life Expectancy Diagram - LED 3.5W 500mm S14S WW ND 1CT/4
    Photometrics
    General uniform lighting - LED 3.5W 500mm S14S WW ND 1CT/4
    General uniform lighting - LED 3.5W 500mm S14S WW ND 1CT/4
    Spectral Power Distribution Colour - LED 3.5W 500mm S14S WW ND 1CT/4
    Spectral Power Distribution Colour - LED 3.5W 500mm S14S WW ND 1CT/4
    Light Distribution Diagram - LED 3.5W 500mm S14S WW ND 1CT/4
    Light Distribution Diagram - LED 3.5W 500mm S14S WW ND 1CT/4
