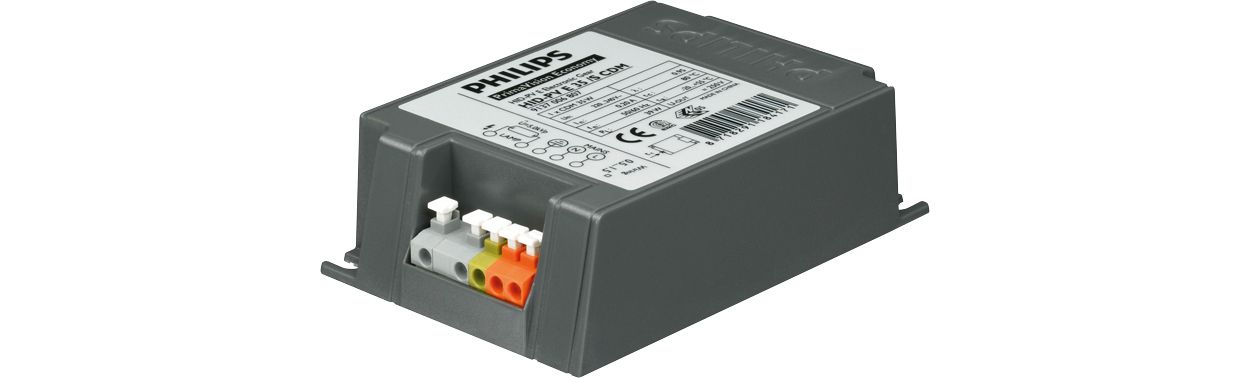

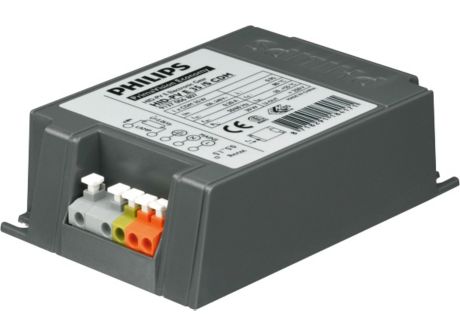

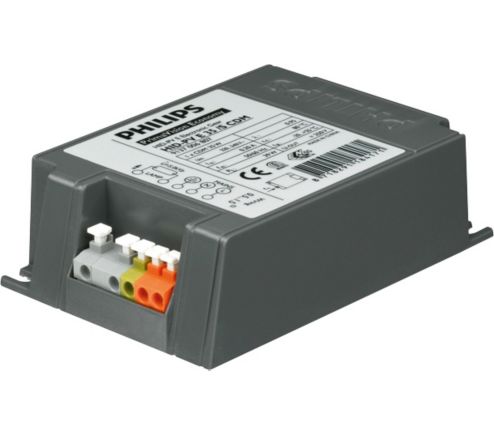

HID-PV E 70 /S CDM 220-240V 50/60Hz

Specifications Show all

General Information

Type version	-
Lamp type	CDM
Number of lamps	1 piece/unit
Number of products on MCB (16 A type B) (nom.)	20
Automatic restart	Yes

Operating and Electrical

Input voltage	220 to 240 V
Input frequency	50 to 60 Hz
Minimum mains voltage operation (min.)	180 V
Operating frequency (nom.)	45-66 kHz
Power factor 100% load (nom.)	0.95
Ignition type	Pulse
Ignition voltage (max.)	5.0 kV
Ignition voltage (min.)	3.0 kV
Mains voltage performance (AC)	-8%-+6%
Mains voltage safety (AC)	180-264V
Inrush current width	0.33 ms
Constant wattage deviation	Not specified
Power losses (nom.)	7 W
Inrush current peak (max.)	33 A
Output voltage	- V

Wiring

Cable capacity output wires mutual (nom.)	120 pF
Cable length from device to lamp	2 m
Ballast contact wire cross section	0.50-1.50 mm²
Connector type	Insert

System characteristics

Rated ballast-lamp power

70 W

Temperature

T ambient (max.)	50 °C
T ambient (min.)	-20 °C
T storage (max.)	80 °C
T storage (min.)	-25 °C
T case lifetime (nom.)	80 °C
T-Case maximum (max.)	80 °C

Mechanical and Housing

Housing

/S

Approval and Application

Active temperature protection	No
EMI 30 MHz... 1,000 MHz	CISPR15 Edition 7.2
Vibration standard	IEC68-2-6 F c
Bumps standard	IEC 68-2-29 Eb
Approval marks	CE marking	ENEC certificate	VDE certificate
Surge test installation level	EN61547
Surge test performance criteria	Not specified
Humming and noise level	37 dB(A)

Product Data

Full product code	871829118419500
Order product name	HID-PV E 70 /S CDM 220-240V
EAN/UPC – product	8718291184195
Order code	18419500
Numerator – quantity per pack	1
Numerator – packs per outer box	12
Material no. (12NC)	913700680966
Net weight (piece)	0.215 kg
